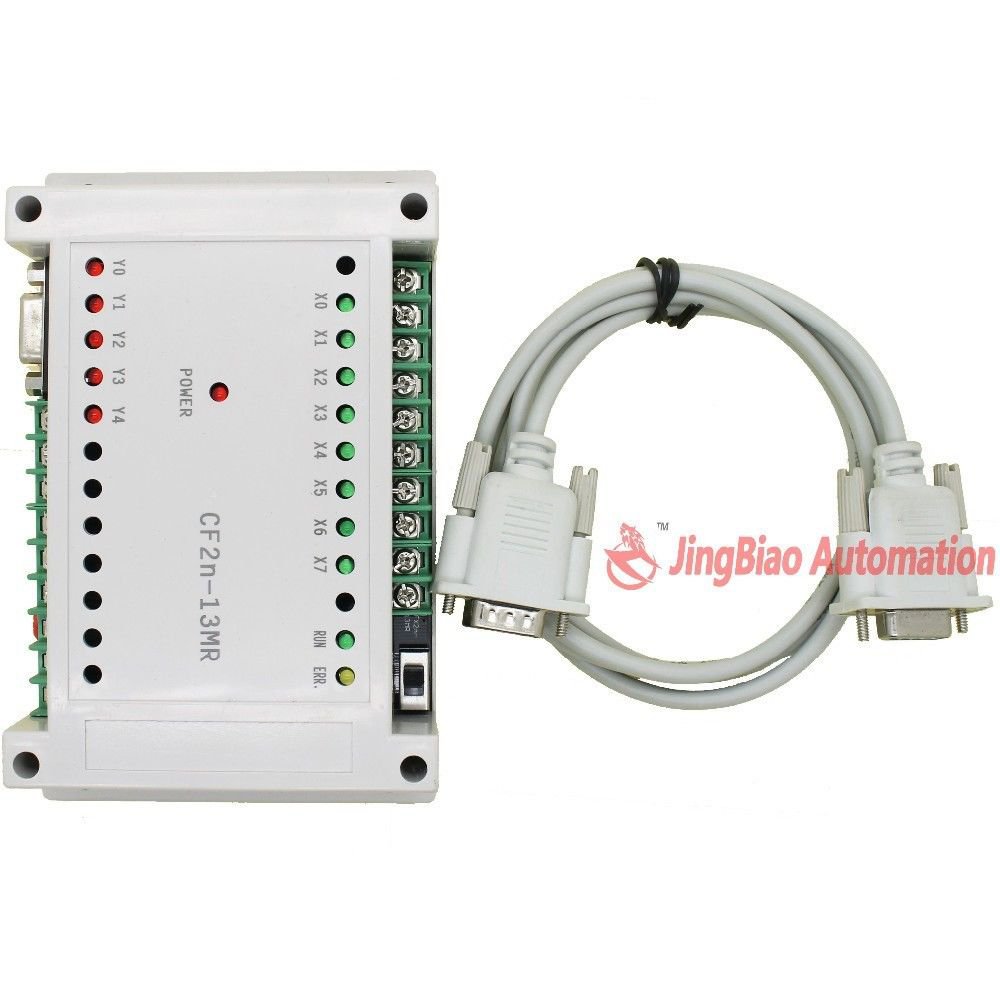

13MR 8 input/5 relay output,PLC with RS232 cable by Mitsubishi FX2N GX Developer

PS. Customers from Russia, please provide your full name(3 letters), or we can't ship your parcel. If you need express shipping, please contact us first. CF2n-13MR 8-channel X-isolated inputs, 5 relay outputs Compatiable Fx2N series PLC the power supply is DC24V Support connecting HMI compatible with Mitsubishi PLC Supports all text can be connected to Mitsubishi PLC connection Supports two stepper motors connected Supports encoder Supports PC monitoring function Unique encryption technology,can not decrypt after encrypted Supports 32-bit Direct download Without conversion ARM version PLC Instruction(The old user must see) 1. Expanding internal resources,Achieving continuous address,Expanding resources(M0-M3071,S0-S999,T0-T255,C0-C255,D0-D999) 2. Before,Power off retentive paragraph are D512-D543,M512-M768,S512-S575,And incompatible with Japan's Mitsubishi .After adjusted ARM version,it’s fully compatible with Japan's Mitsubishi, are D200-D500,M500-M1023,S500-S999. 3.High-speed output increased to 2-ways from original1-way,as same as Mitsubishi PLC,support X0-X7.Supports encoder such as C251 or C252,254.But not support C253 and C255. 4.Output drives are domestic before,we imported all output drives for the ARM version,and output current reaches 3A,Since Y0 and Y1 are High-speed output,Circuits are different,So it’s only 1A output current for Y0 and Y1. 5.In order to distinguish old and new versions,using green PCB for old version and black PCB for new. 6. Instruction is expanding Successively,If any new instruction is needed , please contact us. This board use industrial grade CPU,it is powerful, faster, more stable performance, special encryption make PLC that can not be cracked. Ladder diagram computer programming is flexible and convenient for you, (note: it only serial RS232 ports, no RS485 interface), and human-computer interface (touch screen text display) supporting the use of Confidential performance is good, the inside of the programming function cannot be copied, protect your work achievement. Don't need software conversion, direct download monitoring and normal PLC as download mode Can directly use mitsubishi programming software GX Developer programming, download, debugging and monitoring. Instruction descriptions: Write Program, parameters, comments Read Program, parameters, comments Check Program, parameters, comments Computer monitoring function (convenient debugging) Soft element batch function Soft element landing function Soft element test function Clear memory function Connection text HMI function (baud rate 9600, data bit 7, parity bit, even parity check (even), stop bit 1) Connection touch screen Display function (baud rate 9600, data bit 7, parity bit, even parity check (even), stop bit 1) Data retention during power-down function The product currently supports the following commands in Fx2N: Basic instructions: LD,LDI,AND,ANI,OR,ORI,INV,OUT (OUTT,OUTC),SET,RST,ANB,ORB,LDP,LDF,ANDP,ANDF,ORP,ORF,PLS,PLF,MPS,MRD,MPP,RET,NOP,END. Step Instruction: STL: support up to 8-way parallel branch. Contact comparison instruction: LD>=,LD,LD=,AND,AND=,OR,OR50 Working Days + Saturday + Sunday 21-25 26-45 45-60 >59 Asia country Rate (item arrived ) 90% 10% 0% Refund Ireland Rate (item arrived ) 40% 60% 0% Refund United Kingdom Rate (item arrived ) 40% 60% 0% Refund Greece Rate (item arrived ) 40% 60% 0% Refund Turkey Rate (item arrived ) 35% 60% 5% Refund France Rate (item arrived ) 15% 80% 5% Refund Germany Rate (item arrived ) 20% 70% 10% Refund Russian Rate (item arrived) 10% 50% 40% Refund Spain Rate (item arrived) 5% 45% 50% Refund Argentina Rate (item arrived) 5% 35% 60% Refund Italy Rate (item arrived) 5% 15% 80% Refund Brazil Rate (item arrived) 5% 15% 80% Refund PS. ALL of ship via International registration packet . It have tracking NO. you will receive it after 15-23 days.If you cann't receive in time,please contact me freely. Thanks for your support and understanding. Powered by eCRATER . List your items fast and easy and manage your active items.
