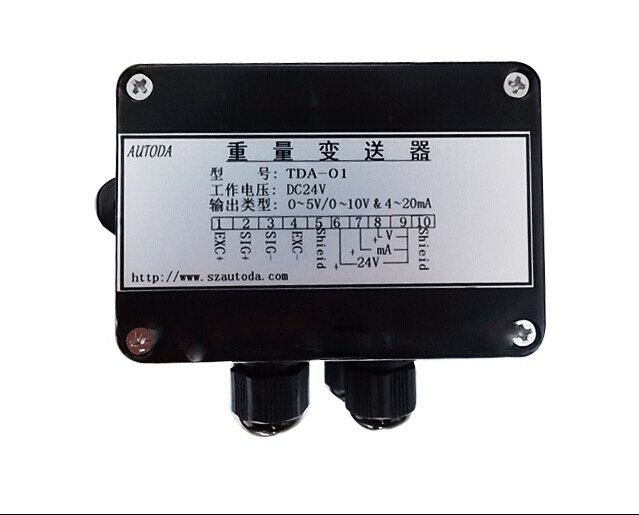

4-20mA load cell amplifier/load cell transmitter 0-10v/weight transmitter 0-5v

4-20mA load cell amplifier/load cell transmitter 0-10v/weight transmitter 0-5v

4 available

Details

Shipping: Australia: $2.00 (more destinations)

Condition: Brand new

  • 4-20mA load cell amplifier/load cell transmitter 0-10v/weight transmitter 0-5v
  • 4-20mA load cell amplifier/load cell transmitter 0-10v/weight transmitter 0-5v
  • 4-20mA load cell amplifier/load cell transmitter 0-10v/weight transmitter 0-5v

Products Weighing transmitter (load cell amplifier) for a variety of load cell signals into 0-5V, 0-10V or 4-20mA 1, you can pick one or two to four sensors can be output simultaneously 0-5V / 0-10V or 4-20mA 2, powered sensors for 5V, 10V can be used, only need to use the process of transmitter power supply, the sensor does not require a separate power supply. 3, Usage: Sensor - Amplifiers -PLC / acquisition module / instrumentation Parameters: Input signal: 2KΩ Input Sensitivity: 2.0mV / v + -10% mV / v Sensor excitation voltage: 5V DC Load capacity: 87 (four 350 ohm load cells in parallel) Ω Power supply: 12-26,0-5V output / 18 ~ 26,0 ~ 10V and 4-20mA output V DC Accuracy: 0.3% FS Temperature characteristics: better than 100ppm Working temperature: 0 ~ 50C Quality: 90G Dimensions: 115X80X35 (in accordance with the hole center distance: 97mm
