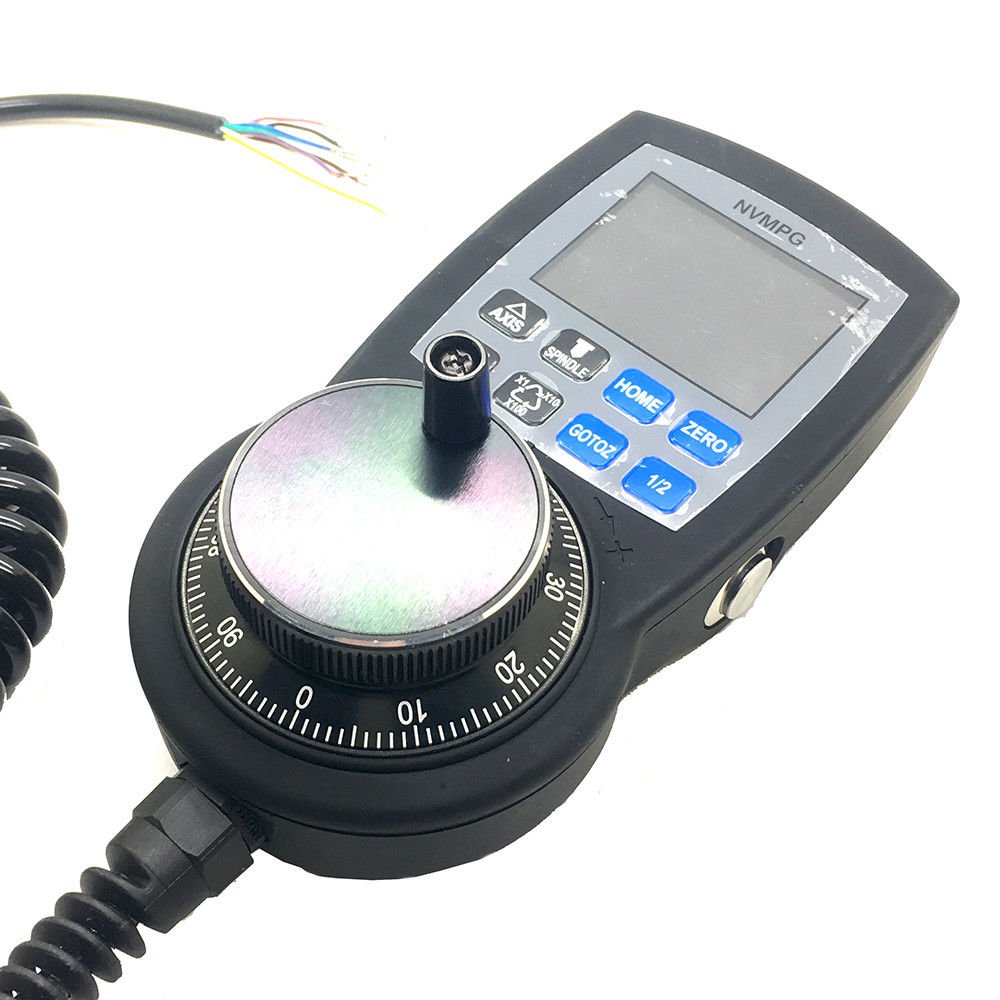

We design a new Manual Pulse Generator named NVMPG. This MPG has a screen, and 10 buttons. The coordinates and some other parameter are displayed on the screen. And user can change axis and rate by the buttons. There are also few other functions e.g. ZERO/ GOTO0/HOME on the buttons. The encoder of NVMPG is the same as general MPG. But the choice of axis and rate use USART port instead of general port. NVMPG has two version, which is Bare line and RJ45 Crystal Head. They are just different on the line end. Bare line version can be connected to our motion control cards directly, such as NVEM3, NVEM4, NVEM5, NVEM6, NVUM3, NVUM4, NVUM5, NVUM6. RJ45 crystal head verison should work with USB to parallel Converter SM762. You could find these in our store. If you fail to find them, feel free to contact us. Specification Feature: 1) High performance, low prices 2) 2.2' TFT Screen 3) 10 buttons 4) Voltage 5VDC 5) 8 wire control line 6) 6 axis coordinates /RESET/FRO/SRO/SJR/SPINDLE are display on the screen Appearance & Dimension: Product size is 150*75*35mm Notice and Warning: Prohibit staying in the rain, it will cause short-circuit. Please use proper voltage power supply and motor. Note the power supply connection. Prohibit reverse connection of power supply Connection: Connection interface definition NVMPG has 8 wires connected to CNC system, the definition of NVMPG see as follow. Package included: 1 x CNC 6 Axis MPG
