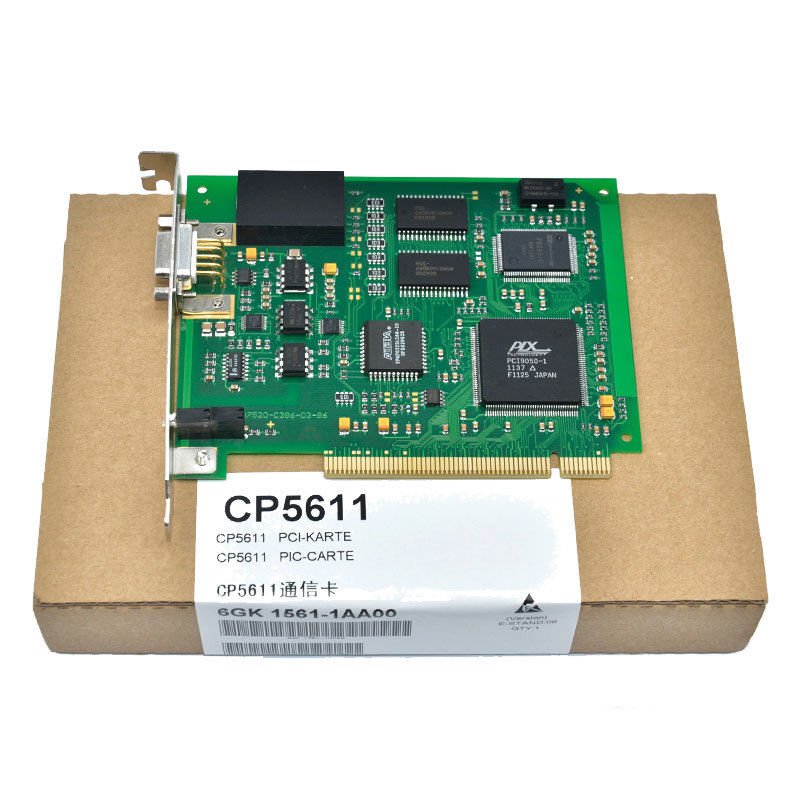

CP5611 PCI PROFIBUS/MPI/PPI communication card 6GK1 561-1AA00

CP5611 communication card is optoelectronic isolated design for industrial applications.There is anti-lightning & anti-surging protection circuit and over-current protection on the RS485 port.The adoption of industrial chip applies to a wide temperature range. CP5611 card is used to achieve the PROFIBUS DP / MPI / PPI communication between PC or PG and the SIMATIC network.Communication services: PROFIBUS-DP master grade 1 and 2 PROFIBUS-DP slave and SOFTNET-DP slave MPI/PPI communicationPG/OP communication S7 communication with SOFTNET-S7S5-compatible communication (SEND/RECEIVE based on the FDL interface) with SOFTNET-DP or SOFTNET-S7CP5611 applies to the following software:STEP7 V.52 and above SOFTNET-S7 SOFTNET-DP SOFTNET-DP slave COM PROFIVUS V3.3 and above STEP 7-Micro/WIN V3.1 and above ProTool, ProToo/Pro NCMPCTechnical specifications:Transmission rate:9.6Kbps~12Mbps, corresponding maximum communication distance conforms to PROFIBUS standardInterface: PROFIBUS/MPI/PPI, isolated 9-pin Sub-D socketIsolation Voltage: 1000VDCRS485 port with anti-lightning and anti-surging protector, repeatability surge capacity: Ipp = 100A (10/700us, 4KV)Standard: ITU-TK20/21, VDE 0433. ± 15KV ESD (ESD) protectionOver-current protection: RS485 interface can withstand up to 60V voltage caused by the sustained over-currentPG/PC connection: PCI2.1 standard slotStandard voltage: +5 VDCPower: 2.0WOperating temperature: 0 ~ + 70 ° Size (width × high) (mm): 102 × 130Weight: 100g
