Expedite shipping 3 axis 3.5 Inch Color LCD CNC stepper servo controller lathe PLC

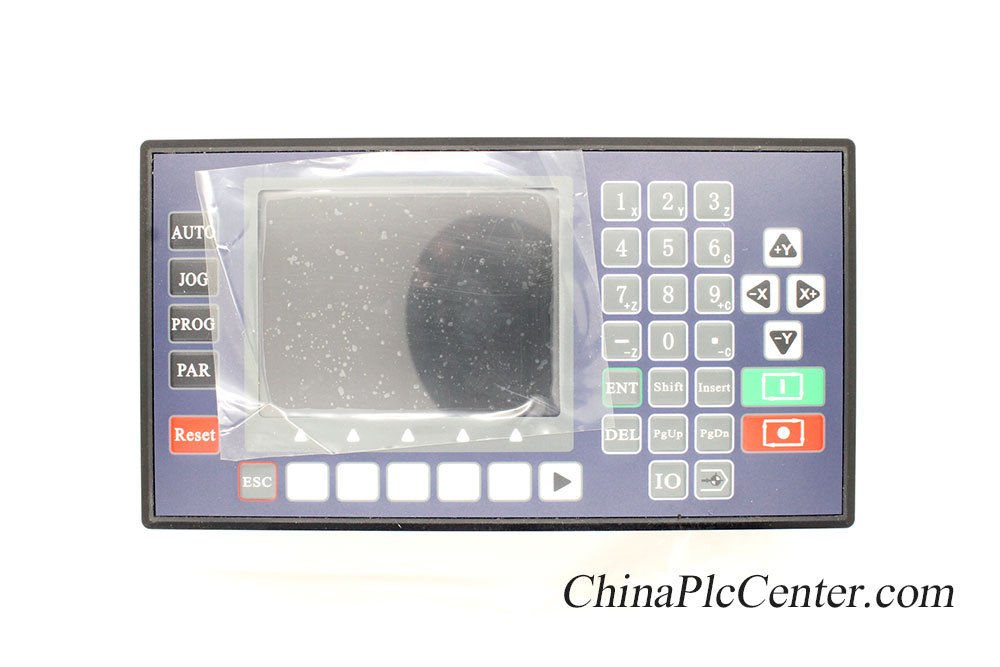

Product Introduction TC55V stepper/servo motor controller is an upgrading version of TC55. It is equipped with 3.5 inch color screen, RS 485 communication, Chinese/English Switch, and USB connection. It is highly reliable, highly accurate, low noise and easy to use. Programming method Different with CNC controllers of Fanuc and Siemens, this controller use revolutionary conversational programming, which is easy to learn and use, automatically lead you to finish programming. Don't support load your g-code. Main Functions Automatically execute:Actual running, Dry running, Single-step execution, Terminate program, Start and Pause function Manual operation:Manual high speed, Manual low speed, Jog operation, Back to program zero, Back to machine zero Program management:absolute programming, Incremental programming, linear and circular interpolation, back to machine zero, sub-program call,register, delay, repeat, Output, PLC set, Pause Parameter settings:Set various control parameters of processing and operation, get the best status of processing effect Exterior Manual Operation: control motor clockwise and counter-clockwise spinning, Start, Pause, Alert and Emergency Stop. USB Connection and upgrade PLC Extension I/O Extension Isolated I/O port Chinese/English panel display Free change of boot picture Technical Specifications Minimum data unit 0.001 mm Maximum data size ± 99999.999mm Maximum Speed: 9000mm/min (pulse is 0.001mm) Maximum pulse output frequency 150KHz Axis 1-4 (X,YZ,C) X,Y,Z,C axis can conduct linear interpolation, X,Y can do circular interpolation. Electric Gear: numerator :1-99999 denominator: 1-99999 System main functions are automatic, manual, program editing, system parameters, self-check, settings, etc. Size Outside Size 172×94×48mm Installing Size: 162×84mm,Front Panel: 4mm
