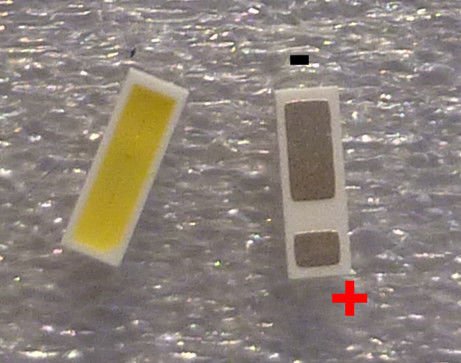

GM5FM2CP10A For SHARP LED TV BACKLIGHT 0.4W 3V 4214 COOL WHITE 50PCS/LOT

GM5FM2CP10A For SHARP LED TV BACKLIGHT 0.4W 3V 4214 COOL WHITE 50PCS/LOT
  • GM5FM2CP10A For SHARP LED TV BACKLIGHT 0.4W 3V 4214 COOL WHITE 50PCS/LOT
  • GM5FM2CP10A For SHARP LED TV BACKLIGHT 0.4W 3V 4214 COOL WHITE 50PCS/LOT

10 available

Details

Shipping: Australia: $2.00 (more destinations)

Condition: Brand new


GM5FM2CP10A SHARP LED TV BACKLIGHT 0.4W 3V 4214 COOL WHITE 50PCS/LOTForward Current(IF)：120mAPulse Forward Curren"t1 (IFp)：145mAReverse Current(IR)：10uAReverse Voltage(VR)：5VPower Dissipation(PD)：408mWOperatin Tgemperature(Topr)：-30~ +85 ℃Storage Temperature(Tstg)：-40 ~ +100 ℃Soldering Temperature(Tsld)： 260℃ 10S / 350℃ 3SJunctio Tnemperature(Tj)：110℃Forward Voltage(VF)：2.80-3.30V（80mA）(Iv)： 21.5-28.5LM（80mA）COOL WHITE: x=0.295 ，y=0.275 (80mA)4.2×1.4×0.8 mm (L×W×H)
