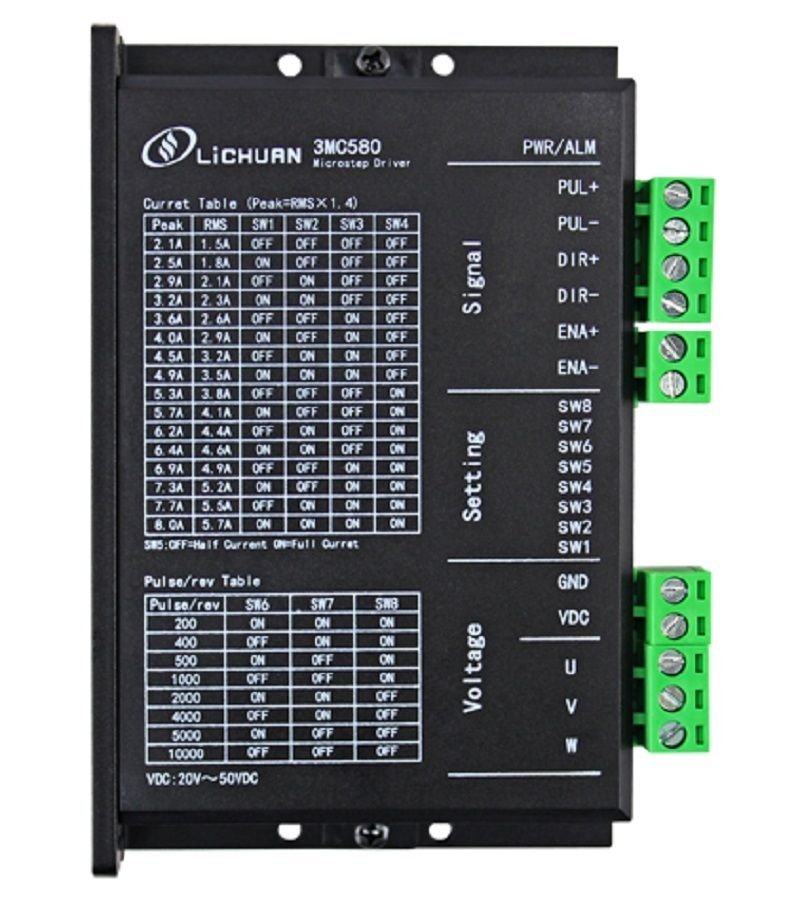

3phase NEMA23 NEMA34 hybrid stepper motor driver DSP DC20V-50V 5.7A 3MC580

Product Name: three-phase 57/86 digital stepping driver 3MC580The 3MC580 digital stepping driver adopts a new generation of DSP technology, which is suitable for driving three-phase 57/86 stepping motors. Drive voltage: DC20V~50V, maximum drive current 8A. It can set any subdivision within 256 and any current value in rated current to meet the application requirements of most medium and small equipment. The internal self tuning function is adopted in the drive, and the optimum parameters can be automatically generated for different motors without manual adjustment, so that the motor performance can be optimized. Product features: driving 3 wire /6 wire Three phase stepping motorSignal input: differential / single ended, pulse / direction or double pulse, 5~24VDC level compatibleYou can set parameters through the serial portThe automatic setting function of power on parameters can be set upThe precision current control greatly reduces the heating of the motorAt rest the current is automatically halvedPhotoelectric isolation washing your input, anti-interference abilityIt has overvoltage, overcurrent and other protection functions Control signal interface NAME function PUL+ Pulse input signal: pulse effective edge adjustable, the default pulse rising edge is valid; in order to respond reliably to pulse signal, pulse width should be greater than 1.2 Mu s. 5~24VDC level compatible. Double pulse mode: CW PUL- DIR+ The direction input signal: high / low level signal, in order to ensure the reliable motor reversing direction signal should precede the pulse signal of at least 5 s, the initial operation of the direction of motor related motor winding connection, swap any phase winding (such as A+, A- exchange) can change the initial motor running direction. 5~24VDC level compatible. Double pulse mode: CCW DIR- ENA+ Enable control signals for enabling or disabling drive output. When the ENA is connected to a low level (or an internal optocoupler), the driver will cut off the current in each phase of the motor so that the motor is in a free state and does not respond to step pulses. When this function is not required, the signal is left unconnected. 5~24VDC level compatible. ENA- item function GND DC - VDC DC +，From：+20VDC~+50VDC，recommend +36VDC U Motor U V Motor V W Motor W Application:Suitable for all kinds of motion control automation equipment and instruments, such as electronic processing and testing, semiconductor packaging, laser cutting and welding, laser printing, packaging machinery, engraving machine, marking machine, cutting machine, apparel plotter, CNC machine tools, automatic assembly equipment etc.. It is the first choice for users with low noise, high speed performance and competitive cost performance.
