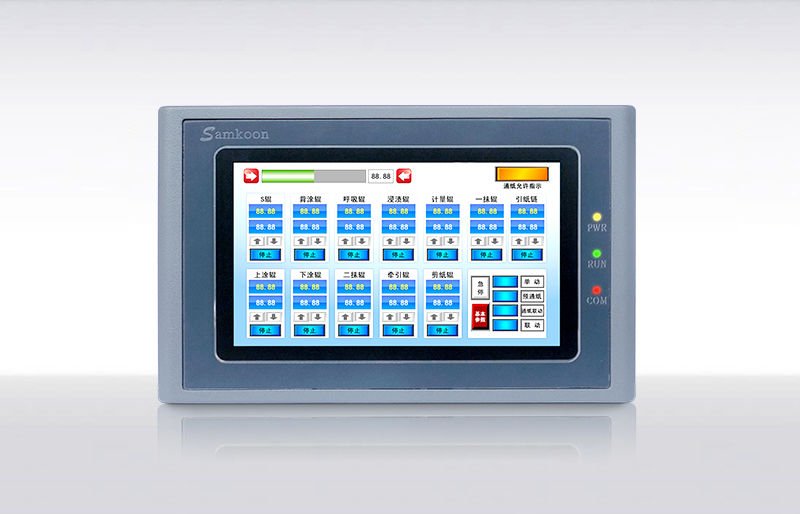

SK-050HE Samkoon HMI Touch Screen 5 INCH replace SK-050AE new in box

1, package included: 1pcs SK-050HE human machine interface HMI touch screen new in box; 1pcs programming cable(Only offer it free when you ask for after order. Not ship it default. The communication cable is not included, if you need, please contact us and inquiry it) The software SKtool is free(we can send it by email if you can’t download it by yourself) The SK050AE screen will be discontinued after April 1, 2017 and replaced by the new SK050HE model! 2, Performance specification SK-050AE Key Technical Parameters Model SK-050HE Display Size 5”(length : width=16:9) Resolution 800*480 Brightness 400 cd/m2 Contrast 400 : 1 color 262, 144 color Backlight LED Control panel 4-wire high-precision electric resistance touch screen COM COM1 (RS232, RS422, RS485) USB download port USB Device YES USB port USB Host YES Ethernet port None SD card None Storage 128M FLASH +128M DDR2 CPU 32-bit 600MHz Supply power DC: 24V (±15%),6W Power consumption 3W FCC compatibility FCC, Class A Pressure-proof test 6kv CE certification EN55022 EN55024 Operation temperature -10~650 Operation humidity 10~90%RH( no condensation) Shockproof degree 10-25Hz( X Y Z dimension 2G/30 minutes) Protection Level IP65( front panel) Curst material Engineering plastic ABS + PC External size 165x 103x 39(mm) Installed portiforium size 157x 95(mm) weight About 0.8kg Configuration software SKtool
