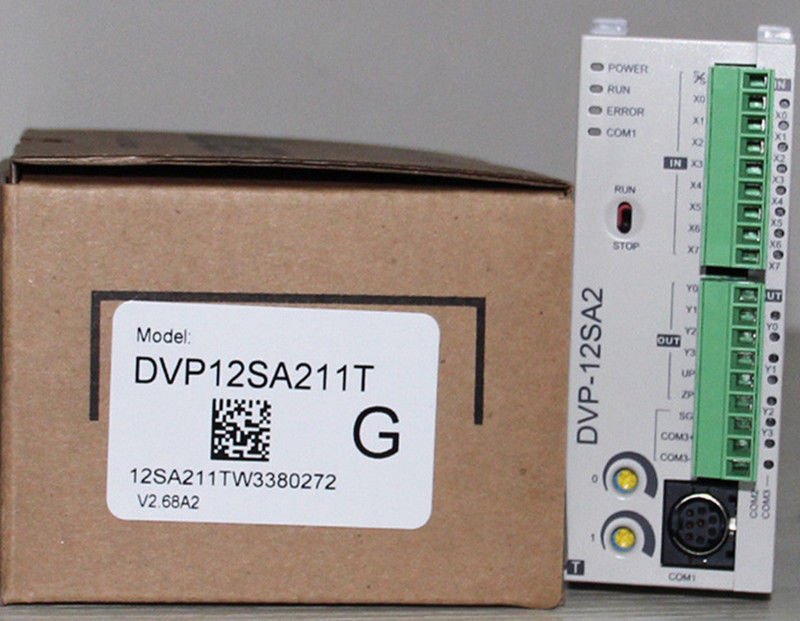

DVP12SA211T Delta SA2 Series Advanced PLC DI 8 DO 4 Transistor 24VDC new in box

The new generation DVP-SV2 PLC is the high-end model of the Delta DVP-S series. It provides larger program capacities and data registers for more demanding and complex applications. High-speed pulse output: 4 sets of 200kHz pulse output Supports max. 4 hardware 200kHz high-speed counters Increases many motion control instructions to meet the applications that require high-speed and high-precision positioning Offers linear / arc interpolation motion control Provides up to 16 external interrupt pointers Complete Program Protection Auto backup function to prevent losing programs and data even when the battery runs out Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged Up to 4-level password protection protects your source programs and intellectual property Supports DVP-S series left-side and right-side modules Add new ETHRW instruction for Ethernet communication The 2nd generation DVP-SA2 series slim type PLC offers bigger program capacity and executing efficiency, offering 100 kHz high-speed output and counting functions. It is extendable with DVP-S series left-side and right-side extension modules. MPU points: 12 (8DI + 4DO) Max. I/O points: 492 (12 + 480) Program capacity: 16k steps COM port: Built-in RS-232 & 2 RS-485 ports, compatible with Modbus ASCII/RTU protocol. Can be master or slave. High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output. Extendable to Max. 8 Modules: DVP-SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication modules and single-axis motion control functions. Built-in High-Speed Counters DVP12SA211R Delta SA2 Series Advanced PLC 24VDC DI 8 DO 4 Relay DVP12SA211T Delta SA2 Series Advanced PLC 24VDC DI 8 DO 4 Transistor Payment : we only accept Paypal for online shopping.shipment:We use DHL,EMS as shipment method in normal.Guarantee:1 year quality warranty.
