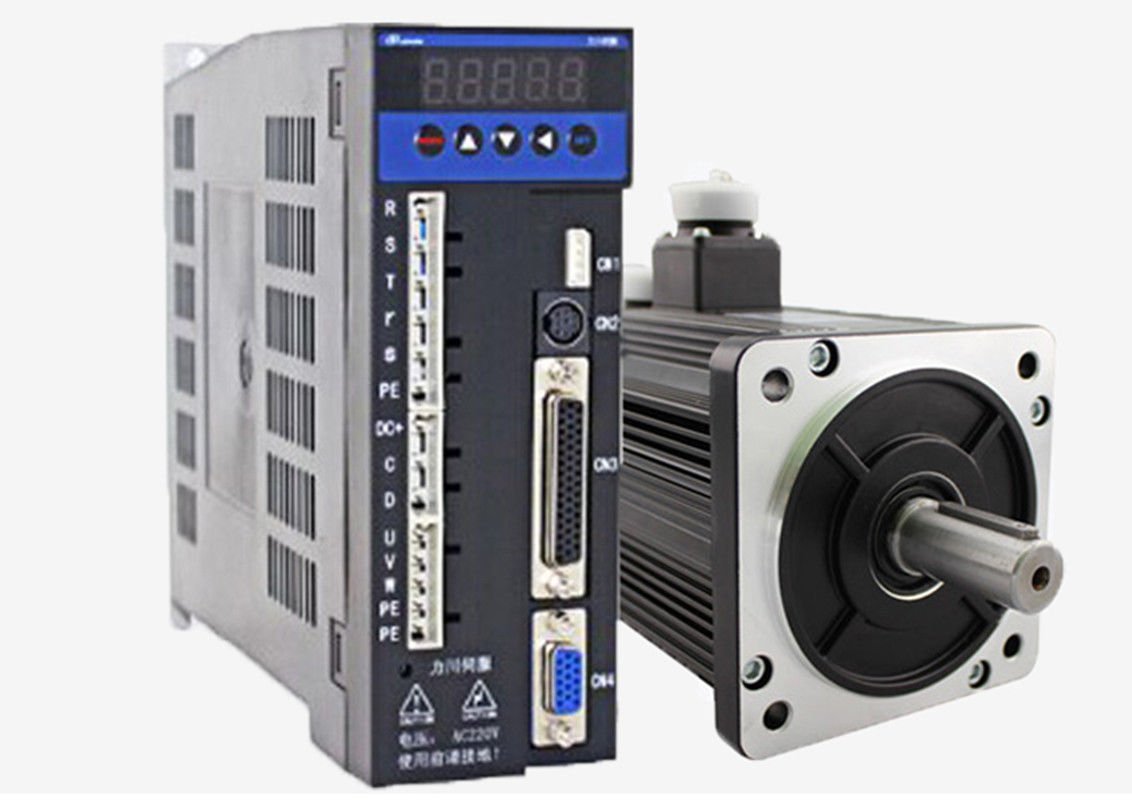

3phase 220V 1200w 1.2kw 4N.m 3000rpm 110mm AC servo motor drive kit 2500ppr

3phase 220V 1200w 1.2kw 4N.m 3000rpm 110mm AC servo motor drive kit 2500ppr with 3m cable Package including: Product Specification Quantity LC 1200w servo motor LCMT-12L02NB-110M04030B 1 LC 1200w servo drive LCDB2-123002-LB1132 1 Servo power cable Standard configuration (3m) 1 Servo encoder cable Standard configuration (3m) 1 If you need the servo motor with brake, please contact with us. If you need longer cable for this servo system, please write us .we can offer 5m,10m,15m,20m length cables. Please leave your email address to get the user manual of the servo driver if you need. Lichuan Servo Motor Naming Rules LCMT - 02 L 02 N B - 60 M006 30 B · LCMT--- Product information · 02-------- 200W ( 04---400W / 07---750W / 10---1KW ) · L---------- Motor inertia ( L---low / M---middle ) · 02-------- Sensing form ( 01---line saving encoder 2500 02---15 type encoder 2500 ) · N---------- Without brake ( Z---with brake ) · B--------- only keyway no oil seal ( A---only oil seal no keyway C---oil seal and keyway ) · 60-------- Frame size · M006--- Torque · 30-------- Speed · B--------- B series ( A--- A series / C--- C series ) Lichuan Servo Driver Naming Rules LCDB2 - 02 20 02 - L B 6 22 · LCDB2-- Product information · 02-------- Motor power ( 02---200W 04---400W / 07---750W / 10---1KW ... ) · 20-------- Peak current ( 20---20A / 30---30A / 50---50A / 75---75A ) · 02-------- Encoder information ( 01---line saving encoder / 02---15 type encoder ) · L---------- Motor inertia ( L---low / M---middle ) · B---------Driver series ( A---A series / B---B series / C---C series ) · 6--------- Frame size ( including 6 / 8 / 9 / 110 ... ) · 22-------- Voltage ( 22---single phase 220v / 32---3 phase 220v / 34---3 phase 380v ) 1200W servo Motor LCMT-12L02NB-110M04030B Parameters Overviews Motor Model LCMT-12L02NB-110M04030B Brand Lichuan Frame Size 110 mm * 110 mm Motor Length 189 mm Shaft Diameter 19mm Driving Voltage 3 Phase 220V Rated Torque 4N.M Rated Speed 3000 RPM Positioning Accuracy 0.01 mm Encoder 2500ppr Weight 5.5kg Matched Driver LCDB2-123002-LB1132 1200W Servo Driver LCDB2-123002-LB1132 Features 1. Power Range: 1.2kw 1200w 2. Input Voltage: AC 200V-230V , 3 phase 3. Position / Speed control mode 4. With MODBUS communication performance(RS-485 / RS-422 / RS-232), ASCII and RTU communication protocol 5. Encoder: 2500ppr Payment 1. We accept PAYPAL. 2. If you have any difficulty in paying your items, pls contact us first and we will soon help to solve it. Shipping 1. Rule all items will be shipping within 3-5 business days after you placed order. 2. UPS/DHL/FedEX express shipping usually takes 3-7 working days depended on the country delivered to. We will choose the best and most suitable shipping for you. 3. Customer should pay for the custom fee in any case. 4. We are not responsible for any accidents, delay or other issues that are the responsibility of the shipping service. Warranty& Return Policy 1. The items are ALL BRAND NEW .All products have been checked and packaged in good condition before dispatch. 2. You have 14 days to return the items from the date they were received. If the items are your possession more then 14 days, we would provide the 12 months Manufacturer’s for defective items. 3. All returned items must be in the original packaging and you must provide us with the shipping tracking number, specific reason for the return, and your ID. 4. Return shipping is to be paid by the buyer.
