MT8102iE Weinview HMI Touch Screen 10.1inch replace MT8101iE MT8100iE

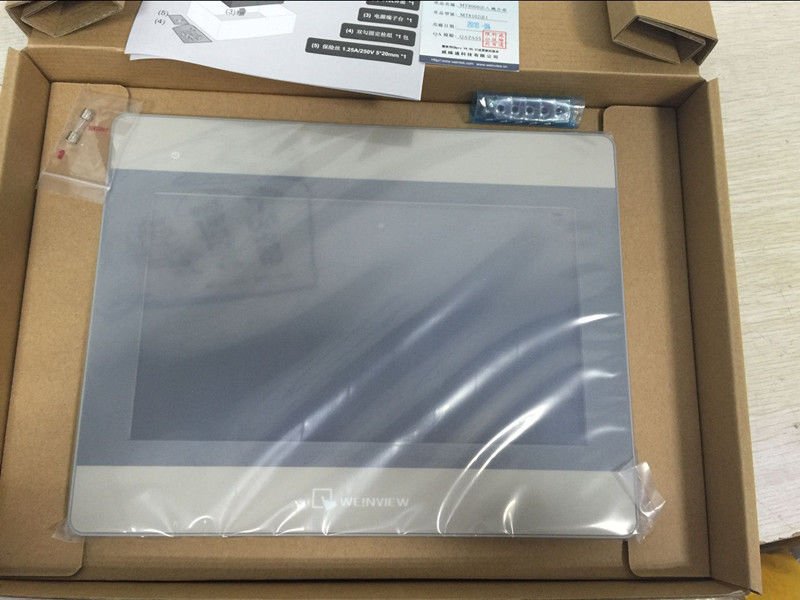

1, package included:1pcs MT8102iE human machine interface HMI touch screen new in box;1pcs programming cable(Only offer it free when you ask for after order. Not ship it default. The communication cable is not included, if you need, please contact us and inquiry it)The software is free(we can send it by email if you can’t download it by yourself)2, Performance specification display Display type 10.1”TFT resolution 1204 x 600 lightness (cd/m2) 350 contrast 500:1 backlight LED Backlight life More than 50,000 hours color 16.7M Touch panel Four-wire analog resistance type memory Flash (MB) 128 DRAM (MB) 128 processor 32Bit RISC Cortex-A8 600MHz communication SD N/A USB Host USB 2.0 x 1 USB Client N/A Ethernet 1 RJ45 port(10/100 Base-T) COM Con.A: COM2:RS-485 2w/4w,Com3:RS-485 2w. Con.B:COM1:RS232/COM3:RS232 Calendar Built in power input 24±20%VDC power 400mA 24V Isolated power Built in Pressure-proof 500VAC (1 munite) Insulating resistance 50MW at 500VDC Quake-proof 10 to 25Hz(X,Y,Z 2G 30munites) Specifications Sheathing material ABS Outside measurement 271x 213 x36.4mm Opening size(mm) 260x 202mm Weight(kg) 1.3 kg Operating Environment Protection level NEMA4/IP65 Storage Temperature -20 to 60°C (-4°to 140°F) Operating Temperature 0°to 50°C(32°to 122°F) Operating Humidity 10% to 90% 40°C CE Certification CE CE marked Software EasyBuilder Pro Payment : we only accept Paypal for online shopping.shipment:We use DHL,EMS as shipment method in normal.Guarantee:1 year quality warranty.
