A61L-0001-0074 14" Replacement LCD display for FANUC CNC system CRT monitor

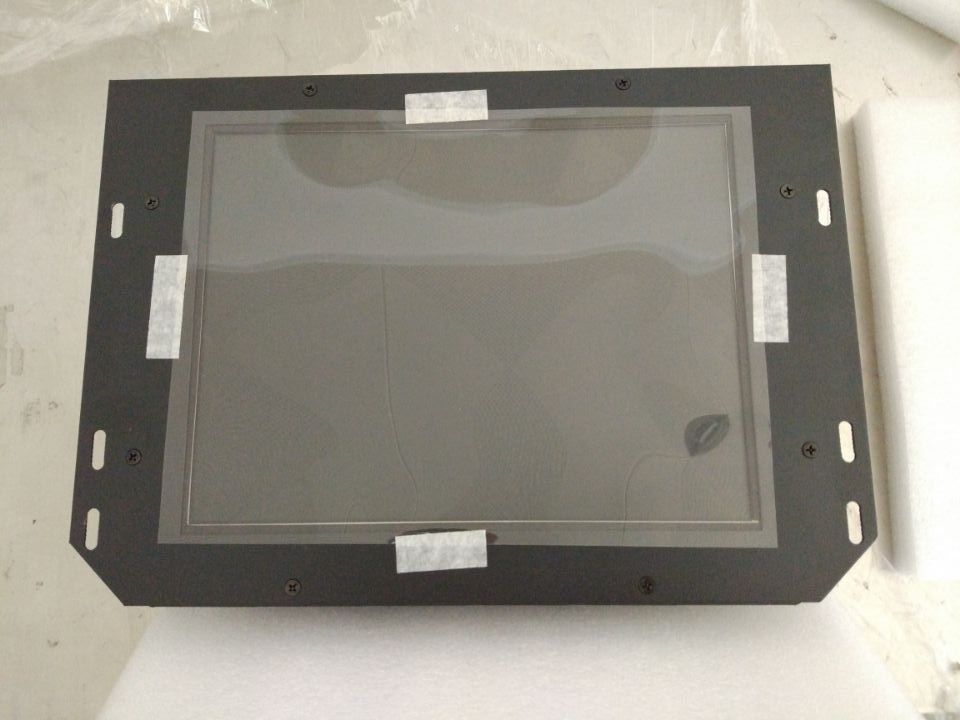

A61L-0001-0074 compatible LCD display 14 inch for CNC machine replace CRT monitor Fanuc A61L-0001-0074 display, is the earliest in FANUC, installed in the Fanuc 6 series or Fanuc 10, Fanuc 11, Fanuc 12 in control system and on labels, also called TX-1450ABA5, 14X59-1, which can be directly replaced by the LCD monitor The signal interface is HONDA MR-20M, and the display is 14 inch color CRT display The replacement LCD monitor specification as follows: 1. support 15KHz to 48KHz frequency line signal, field frequency of 48Hz to 75Hz, the positive and negative automatic adaptation, input line field automatic frequency scanning. 2. support field input for digital TTL signals or analog signals. 3. input interface: D-sub, 15PIN, BNC interface and other interfaces, can be customized. 4. support black and white display, monochrome display, color display, true color display. 5., support automatic recognition of the screen, adjust the width. 6. support separation of synchronous signal HV, composite synchronization signal Cs or synchronous signal compound in the video G signal (Sog), polarity, positive and negative are automatically identified. 7.75-500 ohm high input impedance, suitable for all kinds of strong and weak signal source Technical parameters of industrial screen: Type KTV148 RGB EGA CGA MDA Screen Screen size 246*184.4mm(length*width),12.1 inches,4:3 Sweep range H-row scanning: 15Khz-48Khz Plus-n-minus auto-adaptation V-row scanning: 48hz-75hz Plus-n-minus auto-adaptation Input signal Signal source types MDA,CGA,EGA,VGA RGB,RGsB,RGBS,RGBHV signals Synchronization method HV row filed separation, HV row field mix Cs, green segregation Sog TTL digital level: 2.4 ~ 5.0V or Low 0.0 ~ 0.8V Analog model level: 0.7-2.5VP-P Input resistance 75-500 O high input impedance which can adapts to various signal sources. Scanning mode Interlaced scanning/ sequential scanning Signal line 9-pin signal line (optional), 15-pin signal line, BNC input Screen colors 262K, monochromatic, black-and-white Contrast 450: 1 Brightness 400 cd/m2 (Typ.) Response time 15/30 (Typ.)(Tr/Td) (ms) Working conditions Temperature: -10 ~ +65, humidity: 20% ~ 95% Storage conditions Temperature: -30 ~ +70, humidity: 10% ~ 95% The Old CRT monitor A61L-0001-0074 TX-1450ABA5 as follows: The replacement LCD display as follows: You can replace it as following: 1st, Remove the old CRT display and empty the original CRT position. See below 2nd, Remove the old CRT display and empty the original CRT position. See below The new LCD directly installed, the corresponding fixed screw holes, the signal wire is inserted, connect the power line can be, some parameters can be obtained by OSD display menu display optimization, thus completing the CRT replacement for A61L-0001-0074 liquid crystal process. 3rd,The display after installing Our products all adopt imported industrial LCD panel and power supplies from companies such as SHARP & AUO to ensures that it has a long service life, low failure rate, suitable for working condition of continuous use of 24 hours, without daily maintenance, with exactly same mechanical size of the original hole site, and can quickly restore production as long as to plug in the signal interface and power interface. Compared with the original CRT monitor, LCD monitor has advantages of simple structure, lower power consumption, little daily breakdown, strong vibration resistance, strong electromagnetic interference resistance, simple maintenance, light weight, and easier to standardization, etc. All models are of regular stock to ensure rapid delivery and some special use display can be customized.
