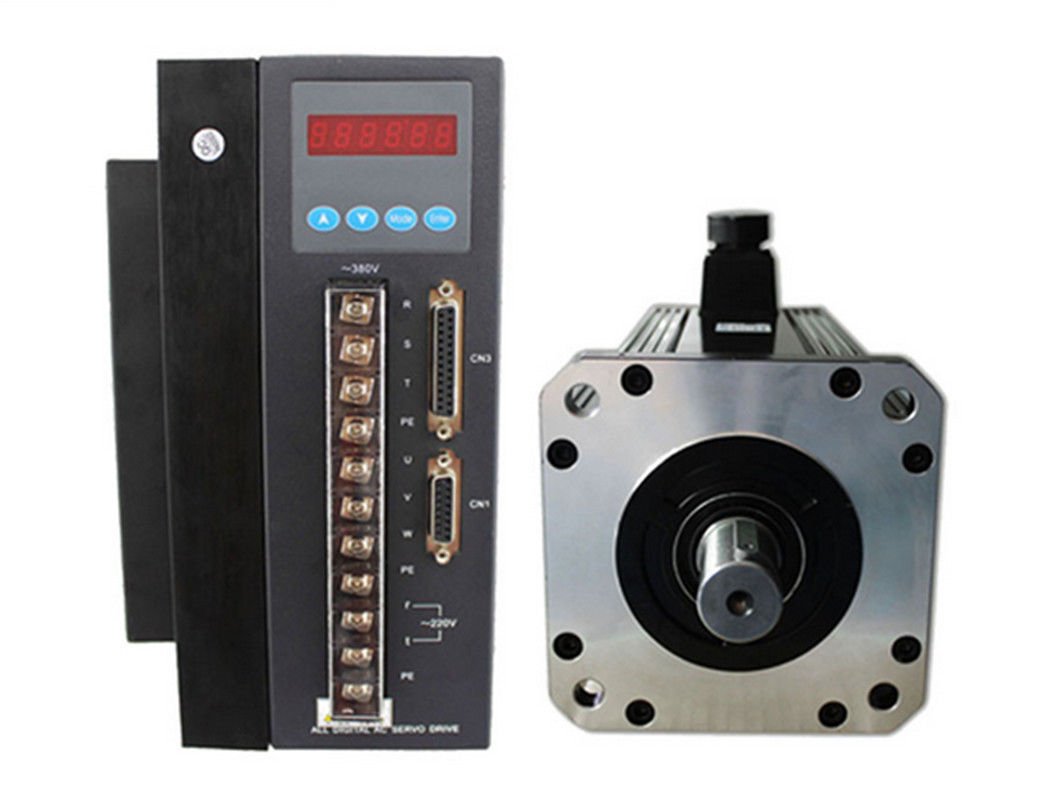

3phase 380V 4.5kw 21.5N.m 2000rpm 180mm AC servo motor drive kit 2500p/r

3phase 380V 4.5kw 21.5N.m 2000rpm 180mm AC servo motor drive kit 2500ppr with 3m cable Package including: Product Specification Quantity LC 4500w servo motor LCMT-45M02NB-180M21520B 1 LC 4500w servo drive LCDA-455002-MB1834 1 Servo power cable Standard configuration (3m) 1 Servo encoder cable Standard configuration (3m) 1 If you need the servo motor with brake, please contact with us. If you need longer cable for this servo system, please write us .we can offer 5m,10m,15m,20m length cables. Please leave your email address to get the user manual of the servo driver if you need. Lichuan Servo Motor Naming Rules LCMT - 02 L 02 N B - 60 M006 30 B · LCMT--- Product information · 02-------- 200W ( 04---400W / 07---750W / 10---1KW ) · L---------- Motor inertia ( L---low / M---middle ) · 02-------- Sensing form ( 01---line saving encoder 2500 02---15 type encoder 2500 ) · N---------- Without brake ( Z---with brake ) · B--------- only keyway no oil seal ( A---only oil seal no keyway C---oil seal and keyway ) · 60-------- Frame size · M006--- Torque · 30-------- Speed · B--------- B series ( A--- A series / C--- C series ) Lichuan Servo Driver Naming Rules LCDB2 - 02 20 02 - L B 6 22 · LCDB2-- Product information · 02-------- Motor power ( 02---200W 04---400W / 07---750W / 10---1KW ... ) · 20-------- Peak current ( 20---20A / 30---30A / 50---50A / 75---75A ) · 02-------- Encoder information ( 01---line saving encoder / 02---15 type encoder ) · L---------- Motor inertia ( L---low / M---middle ) · B---------Driver series ( A---A series / B---B series / C---C series ) · 6--------- Frame size ( including 6 / 8 / 9 / 110 ... ) · 22-------- Voltage ( 22---single phase 220v / 32---3 phase 220v / 34---3 phase 380v ) 4500W servo Motor LCMT-45M02NB-180M21520B Parameters Overviews Motor Model LCMT-45M02NB-180M21520B Brand Lichuan Frame Size 130 mm * 130 mm Motor Length 243 mm Shaft Diameter 35mm Driving Voltage 3 Phase 380V Rated Torque 21.5N.M Rated Speed 2000 RPM Positioning Accuracy 0.01 mm Encoder 2500ppr Weight 23kg Matched Driver LCDA-455002-MB1834 4500W Servo Driver LCDA-455002-MB1834 Features1. Power Range: 4.5kw 4500w2. Input Voltage: AC 380V , 3 phase3. Position / Speed control mode4. With MODBUS communication performance(RS-485 / RS-422 / RS-232), ASCII and RTU communication protocol 5. Encoder: 2500ppr Payment 1. We accept PAYPAL. 2. If you have any difficulty in paying your items, pls contact us first and we will soon help to solve it. Shipping 1. Rule all items will be shipping within 3-5 business days after you placed order. 2. UPS/DHL/FedEX express shipping usually takes 3-7 working days depended on the country delivered to. We will choose the best and most suitable shipping for you. 3. Customer should pay for the custom fee in any case. 4. We are not responsible for any accidents, delay or other issues that are the responsibility of the shipping service. Warranty& Return Policy 1. The items are ALL BRAND NEW .All products have been checked and packaged in good condition before dispatch. 2. You have 14 days to return the items from the date they were received. If the items are your possession more then 14 days, we would provide the 12 months Manufacturer’s for defective items. 3. All returned items must be in the original packaging and you must provide us with the shipping tracking number, specific reason for the return, and your ID. 4. Return shipping is to be paid by the buyer.
