Symmetricom/Truetime XL-AK GPS Time & Frequency Receiver IRIG-B/E AM 600-101-009

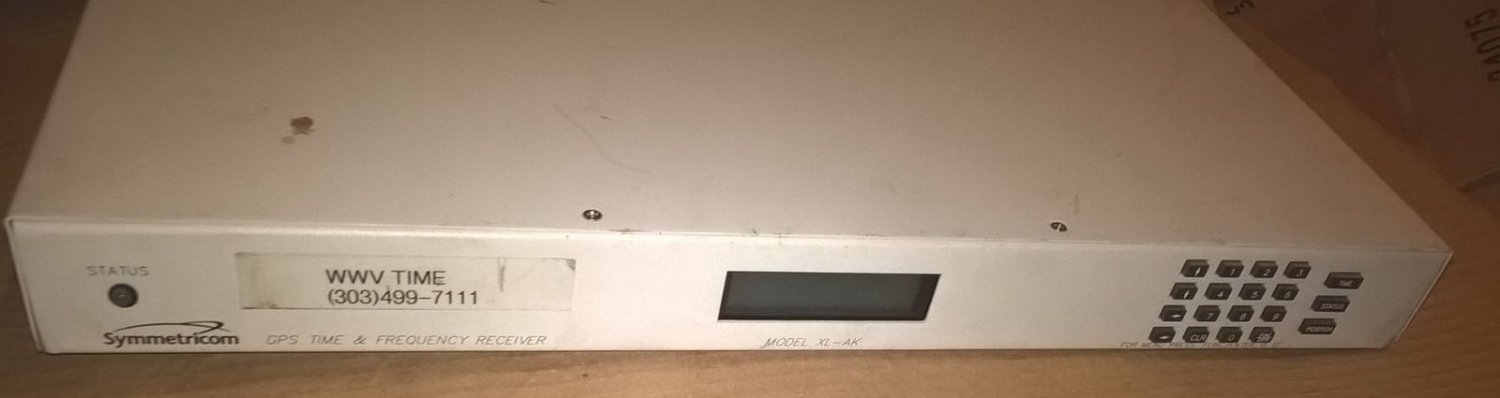

Symmetricom/Truetime XL-AK GPS Time & Frequency Receiver IRIG-B/E AM 600-101-009 We gladly ship to most countries*! Symmetricom/Truetime GPS Time and Frequency Receiver Model XL-AK 600-101-009-12 Time & Frequency TrueTime features a broad range of high accuracy GPS-based time and frequency receivers. From high quality frequency outputs to versatile time-codes, these products are ready to be integrated into a wide variety of mission-critical applications. Truetime Model XL-AK Low-Cost GPS Synchronized Time and Frequency Receiver XL-AK Features: * Less than 40 nanoseconds rms accuracy to UTC* * 1 PPS output * IRIG B time code output * Less than 1 x 10-12 frequency accuracy * Optional user-configurable outputs The economical rack-mount XL-AK GPS receiver provides ultra-precise time and frequency. This configurable instrument provides timing outputs to within 40 nanoseconds rms of UTC/USNO and frequency outputs accurate to less than 1x10-12, even when tracking satellites with Selective Availability (SA) implemented. Optional user-configurable outputs provide significant flexibility in configuring the XL-AK as a central source for IRIG time codes or output pulses. The XL-AK is a popular and affordable GPS receiver for general timing as well as specific power utility and range timing applications. The unit is well suited for precise time and frequency outputs to sequence-of-event recorders (SERs), fault locators, and voltage phase angle systems, as well as frequency and time measurement. The time code output lends itself well for range time distribution and data acquisition applications. Standard outputs include a 1 PPS, analog IRIG B time code and serial I/O time strings. The XL-AK is available in three base configurations to meet varying requirements for keypad control and configurable outputs. RS-232 control is standard on all units. Using the keypad or RS-232 port, users have control over a variety of time formats, configurations, and output options, including GPS and oscillator status and controls. For applications requiring increased oscillator stability, the XL-AK can be upgraded to higher performance oscillators. Models incorporating the five user-configurable rear panel BNC connectors offer the utmost in value and flexibility. Each output can be configured with either an analog or digital driver. Each driver array has the following input signals available to it: * IRIG B, E and H (DC level shift) * IRIG B (amplitude modulated) * Programmable pulse * 1 PPS, 1 kPPS, 10 kPPS, 100 kPPS, 1 MPPS, 10 MPPS SPECIFICATIONS XL-AK RECEIVER/GENERAL Timing Accuracy UTC/USNO: Position Accuracy: Latitude, longitude, and altitude within 10 meters referenced to WGS84, after completion of 24-hour position averaging. Receiver Input: 1575 MHz L1 C/A code Tracking: Eight parallel channels Acquisition Time: Warm start (has ephemeris data and position): typically less than 2 minutes. Cold start typically less than 20 minutes. Internal Oscillator: 16.368 MHz VCTCXO Accuracy: 1x10-12 when tracking satellites Stability: 1x10-9 at 1 second 3x10-10 at 100 seconds 1x10-12 at one day Stability when Not Tracking Satellites: 2x10-6 over 0to +50 Antenna: L1 GPS, 40 dB gain. RG-59/U cable, 50' supplied; maximum cable length 150'. For longer cable runs, see Options. FIXED INPUTS/OUTPUTS 1 PPS Output: TTL into 50 ohms, rising edge on time. 20 microsecond pulse width. Rear-panel BNC. IRIG B Output: 1 kHz amplitude modulated carrier. 3 Vpp high, into 600 ohms. Rear panel BNC. Serial I/O: buyirectional port at RS-232 levels; fixed protocol: 9600, 7, E, 1; DB9 connector. MECHANICAL/ENVIRONMENTAL Receiver: Size: 1.75" x 17" x 10.38" (4.4 x 43.2 x 26.4 cm) Power: 95-260 Vac, 47-440 Hz, Operating Temperature: 0to +50 Storage Temperature: -40to +85 Humidity: To 95%, noncondensing Antenna: Size: 2.625" x 1.5" (6.67 cm x 3.8 cm) Weight: .55 lb. (.25 kg) Operating Temperature: -40to +70 Storage Temperature: -55to +85 Humidity: 100%, condensing Certification: UL, FCC, CE, C-UL, GPS WNRO, Year 2000 Optional OPTIONS * Oscillator Upgrades * Frequency Output: 1, 5, or 10 MHz * External Oscillator Control: 16-bit DAC control of user-supplied external oscillator. Frequency offset data supplied via serial I/O port. * Frequency Measurement: Resolution to parts in 1014 * Time Interval/Event Timing (30 ns resolution) * Differential GPS Mode (RTCM-104): 3 to 5 meter positioning * RS-422 Communication Interface instead of RS-232 * IRIG E modulating a 1 kHz carrier * IRIG H modulating a 1 kHz carrier * L1 GPS Antenna and Downconverter for RG-58 cable runs from 150' to 1500' * Fiber Optic Antenna Link (up to 2 km) * Power Supply: 12 Vdc, 24 Vdc, -48 Vdc, 125 Vdc Don't forget to place your buy. By looking on this product you agree to the following terms: Shipping Terms: Buyer pays all shipping costs. Let us know if there is an issue with the shipping costs, as they are automatically calculated by eCRATER. Shipments made to California must include 8.00% sales tax unless we are provided with a valid resale certificate. We reserve the right to ship with Fedex ground, USPS and any other major carrier in the best interests of the buyer and seller. Payment Terms: Payment is to be made by PayPal Payment is to be received within ten days of close of product. Should payment not be received within ten days the item will be re-listed and high buyder will forfeit. International Terms: (These terms only apply to international shipments.) Buyer is responsible for all brokerage, customs, and or duty charges. *Not all items are available for international shipment due to import/export regulations. In the event that we are unable to ship to buyers country, buyer will receive a full refund. Payment must be made in US Dollars. Money must be drawn against a US bank. Warranty Terms: What you see in the picture(s) is what you get nothing more nothing less. Test results of item(s) in product are described to the best of our ability in the ad. The results of all tests that are performed are disclosed in the ad. The maximum liability of BetterwithBusiness(the seller) is the high buy of the product and original shipping. Return Terms: Returns are allowed within 14 days of receipt If there is a Problem Contact me directly at 619-519-0869 to receive a more immediate response. Opening a case slows the return/refund process. buyder should request a RMA number before returning item(s). Medical Terms: The following terms apply to any and all medical items or any item offered for sale in any medical category or any item that eCRATER deems these terms are applicable to: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, you may not buy on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item. The buyer will not hold the seller, eCRATER or the item's manufacturer responsible for the appropriate or inappropriate use of this device either by the user or a third party. Once purchased, it is the sole responsibility of the purchaser to assume any and all liability from the use of this device. Please note before looking that any medical equipment purchased should be completely tested by a qualified biomedical technician prior to being put into service. Mr. Rydell in San Diego, CA, USA Phone: 619-519-0869 Business name: BetterwithBusiness If any provision of this product Contract is held unenforceable, All remaining provisions of this Contract shall remain in full force and effect. Copyright 2014 BetterwithBusiness - All Rights Reserved. product Wizard 2000 - The Complete product Management Software Solution
