Odyssey 7Q+ Price 300usd

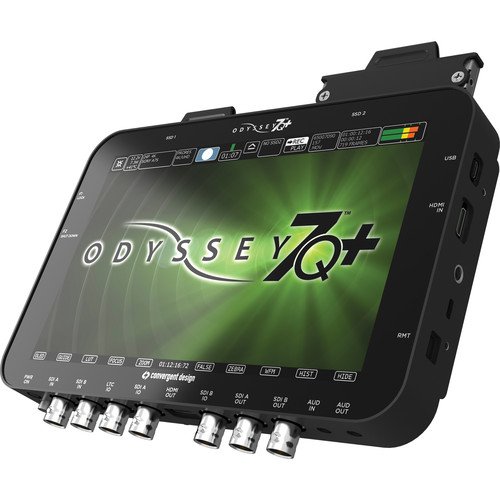

Odyssey 7Q+
Material Cast-magnesium case
Display 7.7" OLED (19.5 cm)
1280 x 800 resolution
Capacitive touchscreen
3400:1 contrast ratio
RGB 8-bit color depth
176° viewing angle
Video I/O 2 x 3G/HD/SD-SDI inputs (BNC)
2 x 3G/HD/SD-SDI outputs (BNC)
2 x 3G/HD/SD-SDI bi-directional (BNC), assignable as inputs or outputs via menu
1 x HDMI mini input, Version 1.4b, 8-bit (supports up to 1080p60 4:2:2, up to 30 fps in UHD 3840x2160, and up to 24 fps in DCI 4K 4096x2160)
1 x HDMI mini output, Version 1.4a, 8-bit (supports up to 1080p30 4:2:2)
SDI Formats Supported Single Link, Dual Link, Quad Link
Recording Formats Compressed Formats:
4K/UHD 10-bit YCC 4:2:2 up to 30fps in Apple ProRes 422 HQ, 422, 422 LT
2K/1080p 12-bit RGB 4:4:4: up to 30fps in Apple ProRes 4444 Regular and XQ
2K/1080p 12-bit RGB 4:4:4: up to 60fps with Canon C500 in Apple ProRes 4444 Regular and XQ
2K/1080p 10-bit YCC 4:2:2 up to 60 fps in Apple ProRes 422 HQ, 422, 422 LT
1080i 10-bit YCC 4:2:2 up to 60 fps in Apple ProRes 422 HQ, 422, 422 LT
720p 10-bit YCC 4:2:2 up to 60 fps in Apple ProRes 422 HQ, 422, 422 LT
Uncompressed Formats:
2K/1080p RGB 10/12-bit 4:4:4 up to 30 fps in DPX file format
1080p RGB 10-bit 4:4:4 up to 60 fps in DPX file format
Digital Audio I/O 2-channel SDI or HDMI embedded audio (48 kHz, 24-bit)
Analog Audio I/O 1 x 3.5 mm input (line level, 2-channel unbalanced or 1-channel balanced input up to -10 dB, 48 kHz, 24-bit)
1 x 3.5 mm headphone output
Built-in Speaker Mono
Recording Media Support 2 x 2.5" SSD slots (Requires Convergent Design Premium 2.5" SSDs or approved third party SSDs)
Timecode LTC I/O (BNC) or embedded via SDI/HDMI
Firmware Updates Via USB port to host computer
DC Power Input 6.5 to 34 VDC with built-in reverse polarity protection; locking power connector; built-in power switch
Power Draw 8 W (monitor only), 9 to 15 W (monitor and record mode)
Operating Temperature 14 to 104°F (-10 to 40°C)
Storage Temperature -4 to 128°F (-20 to 70°C)
Dimensions Measured from end of BNC to SSD tabs:
7.9 x 6.1 x 1.0" (20.0 x 15.5 x 2.5 cm)
Weight 1.2 lb (0.56 kg)
Packaging Info
Package Weight 3.05 lb
Box Dimensions (LxWxH) 11.5 x 7.4 x 2.3"
