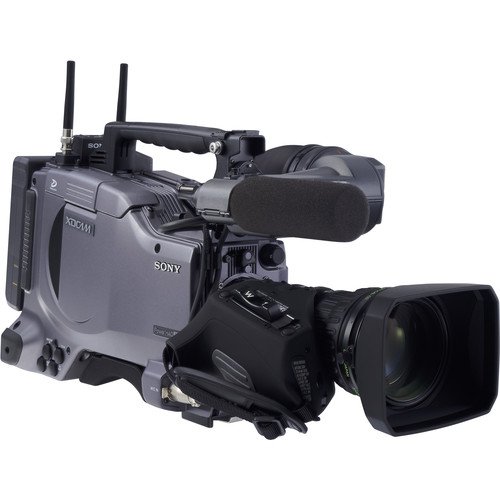

Sony PDW-530 XDCAM Camcorder Price 8500usd

Sony PDW-530 XDCAM Camcorder, 16:9/4:3 Switchable, MPEG IMX 4:2:2 / DVCAM Formats

Sony PDW-530 Specs
Image Device 2/3" Power HAD EX 3CCD, 16:9/4:3 Switchable
Lens Mount 2/3" 48 Bayonet Mount
Signal-to-Noise Ratio 65 dB
Resolution 980 Lines 4:3 Mode
980 Lines 16:9 Mode
Sensitivity f/11 @ 2000 Lux with 3200K
Minimum Illumination 0.13 Lux with F1.4, +48 dB Gain
Signal System DVCAM: NTSC
MPEG IMX: MPEG-2
Vertical Smear -140 dB
Built-in Filters CC Filter
A: Cross Filter
B: 3200K
C: 4300K
d: 6300K

ND Filter
1: Clear
2: 1/4 ND
3: 1/16 ND
4: 1/64 ND
LCD Monitor 2.5" (6.3 cm)
Speaker Yes
Viewfinder 2" Monochrome, quick start type
4:3 Mode: 600 TV Lines (at Screen Center)
16:9 Mode: 450 TV Lines (at Screen Center)
Microphone Yes
Scan Matching Yes
Memory Card Slot Yes, Memory Stick
Shutter Speed Scan Mode: I (interlaced)
1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 (sec.)

Scan Mode: PsF (progressive)
1/40, 1/60, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000 (sec.)

Scan Mode: 24P
1/32, 1/48, 1/96, 1/125, 1/250, 1/500, 1/1000, 1/2000 (sec.)
Gain Selection -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42, 48 dB
Format DVCAM, MPEG IMX
Maximum Recording Time DVCAM: 85 min
MPEG IMX: 45/55/68 min (50/40/30 Mbps)
Audio Dynamic Range 85 dB min.
Audio Signal Format DVCAM: 16 bits, 48 kHz
MPEG IMX: 16/24 bits, 48 kHz, 4 Channels
Audio Frequency Response 20 Hz to 20 kHz-1.0 dB
Signal to Noise Ratio Not Specified by Manufacturer
Input and Output Connectors Audio In CH1/CH2- XLR, 3-pin, female
Time Code- BNC (x 1 input, 1 output)
Genlock- BNC (x 1 input)
Sync- BNC (x 1 output)
Mic Audio- XLR (x 2 input)
Line Audio- RCA (x 2 output)
Headphone- Mini Stereo (x 1)
DC Power- XLR, 4-pin, male (x1 input, x1 output Lens- 12-pin
Remote- 8-pin
Light- 2-pin
i.LINK- 6-pin
Power Requirements 12 VDC
Power Consumption 36 Watts
Operating Temperature 32° to 104° F
0° to 40° C
Dimensions (WxHxD) 13.13 x 10.63 x 5"
33.2 x 26.9 x 12.4 cm
Weight 9 lb
4.1 kg
Packaging Info
Package Weight 17.85 lb
