Sony PXW-X160 Full HD XDCAM Handheld Camcorder Price 1050usd

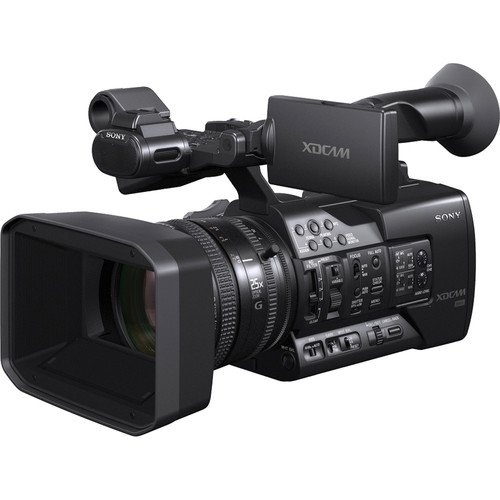

Sony PXW-X160 Full HD XDCAM Handheld Camcorder
Sony PXW-X160 Specs
Camera
Imaging Device 3 x 1/3" type Exmor CMOS sensor
Effective Pixels (H x V) 1920 x 1080
Horizontal Resolution 1000 TV lines or more (1920 x 1080i mode)
Sensitivity F9 (typical) (1920 x 1080/59.94i mode)
F10 (typical) (1920 x 1080/50i mode)
Minimum Illumination 0.12lx (typical), 1920 x 1080/59.94i mode, F1.6, +18 dB gain, 16 frame accumulation, Gamma off, 100% video level
0.02lx (typical), 1920 x 1080/59.94i mode, F1.6, +18 dB gain, 16 frame accumulation, Gamma on, 50% video level
S/N Ratio 60 dB (Y) (typical)
Gain -3, 0, 3, 6, 9, 12, 15, 18 dB, AGC
Gamma Curve Selectable
Shutter Speed 1/32 to 1/2000 sec
Slow Shutter: 2 / 3 / 4 / 5 / 6 / 7 / 8 / 16 frames
White Balance Present (3200K), Memory A, Memory B/ATW
Built-In ND Filters Clear
1/4
1/16
1/64
Linear variable ND, approx. 1/4 to 1/128
Lens
Type Fixed
Zoom Ratio 25x (optical), servo/manual
Focal Length 3.7 to 92.5 mm
35mm Equivalent Focal Length 26 to 650 mm
Aperture f/1.6 to f/11, and closed
Focus Autofocus / manual focus selectable
Minimum Focus Distance Wide (Macro ON): 0.39" (10 mm)
Tele (Macro ON): 31.5" (800 mm)
Image Stabilizer ON/OFF/ACTIVE selectable, shift lens
Filter Diameter 82 mm
Recording
Video Recording Format XAVC-Intra
1920x1080 59.94i: 111 Mbps max
1920x1080 50i: 112 Mbps max
1920x1080 29.97p: 111 Mbps max
1920x1080 25p: 112 Mbps max
1920x1080 23.98p: 89 Mbps max
1280x720 59.94p: 111 Mbps max
1280x720 50p: 112 Mbps max

XAVC-Long
1920x1080 59.94i, 50i: 50/35/25 Mbps max
1920x1080 59.94p, 50p, 29.97p, 25p, 23.98p: 50/35 Mbps max
1280x720 59.94p, 50p: 50 Mbps max

MPEG HD422
1920x1080 59.94i, 50i, 29.97p, 25p, 23.98p: 50 Mbps max
1280x720 59.94p, 50p, 29.97p, 25p, 23.98p: 50 Mbps max

MPEG HD420
1920x1080 59.94i, 50i, 29.97p, 25p, 23.98p: 35Mbps max
1440x1080 59.94i, 50i: 35 Mbps max
1280x720 59.94p, 50p: 35Mbps max

AVCHD
1920x1080 59.94p, 50p: 28 Mbps max
1920x1080 59.94i, 50i, 29.97p, 25p, 23.98p: 24 Mbps max
1280x720 59.94p, 50p: 24 Mbps max

DVCAM
720x480 59.94i: 25 Mbps
720x576 50i: 25 Mbps
Slow & Quick Motion Function XAVC-Intra 1920x1080: 1 to 60 frames (29.97p, 23.98p, 25p)
XAVC-Intra 1280x720: 1 to 60 frames (59.94p, 50p)
XAVC-Long1920x1080:1 to 60 frames (59.94p, 50p, 29.97p, 23.98p, 25p)
XAVC-Long 1280x720: 1 to 120 frames (59.94p, 50p)
HD422 1920x1080: 1 to 30 frames (29.97p, 23.98p, 25p)
HD422 1280x720: 1 to 60 frames (59.94p, 50p, 29.97p, 23.98p, 25p)
Audio Recording Format XAVC-Intra: LPCM 24-bit, 48 kHz, 2 channels
XAVC-Long: LPCM 24-bit, 48 kHz, 2 channels
MPEG HD422: LPCM 24-bit, 48 kHz, 2 channels
MPEG HD420 HQ: LPCM 16-bit, 48 kHz, 2 channels

AVCHD:
LPCM 16-bit, 48 kHz, 2 channels
Dolby Digital 16-bit, 48 kHz, 2 channels
Dolby Digital Stereo Creator employed

DVCAM: LPCM 16-bit, 48 kHz, 2 channels
Recording Time XAVC-Intra:
Approx. 120 minutes (128 GB memory card)
Approx. 60 minutes (64 GB memory card)
Approx. 30 minutes (32 GB memory card)
XAVC-Long 50:
Approx. 240 minutes (128 GB memory card)
Approx. 120 minutes (64 GB memory card)
Approx. 60 minutes (32 GB memory card)
XAVC-Long 35:
Approx. 340 minutes (128 GB memory card)
Approx. 170 minutes (64 GB memory card)
Approx. 85 minutes (32 GB memory card)
XAVC-Long 25:
Approx. 440 minutes (128 GB memory card)
Approx. 220 minutes (64 GB memory card)
Approx. 110 minutes (32 GB memory card)
MPEG HD422:
Approx. 240 minutes (128 GB memory card)
Approx. 120 minutes (64 GB memory card)
Approx. 60 minutes (32 GB memory card)
MPEG HD420 HQ:
Approx. 360 minutes (128 GB memory card)
Approx. 180 minutes (64 GB memory card)
Approx. 90 minutes (32 GB memory card)
AVCHD:
Approx. 290 minutes (64 GB memory card)
Approx. 145 minutes (32 GB memory card)
Approx. 70 minutes (16 GB memory card)
DVCAM:
Approx. 440 minutes (128 GB memory card)
Approx. 220 minutes (64 GB memory card)
Approx. 110 minutes (32 GB memory card)
Interface
Audio Input 2 x XLR 3-pin, female, LINE/MIC/MIC+48V switchable
MIC: -50 dBu / 3 kOhms
LINE: +4 dBu / 10 kOhms
Audio Output 1 x 3.5 mm
SDI Output 1 x 3G-SDI, BNC connector
HDMI Output 1 x HDMI, Type A
Composite Output / GENLOCK-IN 1 x BNC connector, HD-Y / HD-SYNC / composite signal / GENLOCK IN
USB 1 x USB 2.0, mini-B (mass-storage)
1 x Type A (host)
Timecode Input & Output 1 x BNC connector
Remote 1 x 2.5 mm
DC Input 1 x DC jack
Shoe Mounts 1 x Multi Interface Shoe
Headphone Output 1 x 3.5 mm stereo mini-jack
Built-In Microphone Omni-directional stereo electret condenser microphone
Monitoring
Viewfinder 0.5" (1.27 cm) type color OLED
1024 x 768 resolution
Approx. 2.36 million dots
LCD 3.5" (8.89 cm) color LCD monitor
Aspect ratio: 16:9
Approx. 1.56 million dots
Recording Media
Slots 2 x ExpressCard/34; supports SxS PRO+ and SxS-1 memory cards
General
Power Requirements 19.5 VDC (AC Adaptor)
14.4 VDC (battery pack)
Power Consumption Approx. 19.9 W (while recording with LCD Off, EVF On when the external device connector is not used)
Battery Operating Time With battery pack BP-U90: approx. 4 hours (While recording with LCD Off, EVF On when the external device connector is not used)

With battery pack BP-U60: approx. 2 hours, 35 minutes (While recording with LCD Off, EVF On when the external device connector is not used)

With battery pack BP-U30: approx. 1 hours, 15 minutes (While recording with LCD Off, EVF On when the external device connector is not used)
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions (WxHxD) 7.54 x 7.93 x 16.22" (19.15 x 20.15 x 41.20 cm), without protrusions
Weight Approx. 5.95 lb (2.7 kg); body only
Approx. 7.05 lb (3.2 kg); with lens hood, eyecup, battery pack BP-U30, SxS memory card
Packaging Info
Package Weight 12.8 lb
Box Dimensions (LxWxH) 17.0 x 10.7 x 10.7"
