Panasonic AJ-PX230 microP2 AVC-Ultra Camcorder price 1100usd

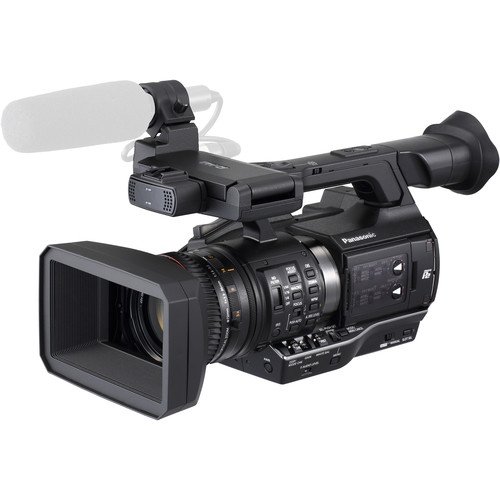

Panasonic AJ-PX230 microP2 AVC-Ultra Camcorder

Panasonic AJ-PX230 Specs
Camera
Image Device 1/3" 2.2MP 3MOS
Lens 3.9 to 86mm (28 to 616mm, 35mm equivalent)
f/1.6 to 3.2
18 lens elements in 12 groups
Zoom Optical: 22x
Digital: 2x/5x/10x
Minimum Focus Distance 3.6' / 1.1 m (from front of lens) Macro Mode: 2.4" / 0.06 m (from front of lens)
Filter Diameter 72 mm
Gain −3 to 36 dB
Sensitivity High Sensitivity Mode:
F11 (2000 lx, 3200 K, 89.9 % reflection, 1920x1080/59.94i)
F12 (2000 lx, 3200 K, 89.9 % reflection, 1920x1080/50i)
Minimum Illumination 0.02 Lux (F1.6, Gain 18 dB, 1 second exposure, High Sensitivity mode)
Built-in Filters ND Clear
1/4
1/16
1/64
White Balance ATW, ATW LOCK, Ach, Bch, preset 3200 K, preset 5600 K, VAR (2000 to 15000 K)
Shutter Speed 59.94 Hz SYSTEM MODE
60i/60p mode: 1/60 (shutter off) sec, 1/100 sec, 1/120 sec, 1/250 sec, 1/500 sec, 1/1000 sec, 1/2000 sec
30p mode: 1/30 sec, 1/50 (shutter off) sec, 1/60 sec, 1/120 sec, 1/250 sec, 1/500 sec, 1/1000 sec, 1/2000 sec
24p mode: 1/24 sec, 1/50 (shutter off) sec, 1/60 sec, 1/120 sec, 1/250 sec, 1/500 sec, 1/1000 sec, 1/2000 sec
50 Hz SYSTEM MODE
50i/50p mode: 1/50 (shutter off) sec, 1/60 sec, 1/120 sec, 1/250 sec, 1/500 sec, 1/1000 sec, 1/2000 sec
25p mode: 1/25 sec, 1/50 (shutter off) sec, 1/60 sec, 1/120 sec, 1/250 sec, 1/500 sec, 1/1000 sec, 1/2000 sec
Slow Shutter Speed 59.94 Hz SYSTEM MODE
60i/60p mode: 1/1 sec, 1/2 sec, 1/4 sec, 1/6 sec, 1/15 sec, 1/30 sec
30p mode: 1/1 sec, 1/2 sec, 1/4 sec, 1/6sec., 1/15 sec
24p mode: 1/1 sec, 1/2 sec, 1/4 sec, 1/6 sec, 1/12 sec
50 Hz SYSTEM MODE
50i/50p mode: 1/1 sec, 1/2 sec, 1/4 sec, 1/6 sec, 1/12 sec, 1/25 sec
25p mode: 1/1 sec, 1/2 sec, 1/4 sec, 1/6 sec, 1/12 sec
Synchro Scan Shutter 59.94 Hz SYSTEM MODE
60i/60p mode: 1/60 to 1/249.8 sec
30p mode: 1/30 to 1/249.8 sec
24p mode: 1/24 to 1/249.8 sec
50 Hz SYSTEM MODE
50i/50p mode: 1/50 to 1/250 sec
25p mode: 1/25 to 1/250 sec
Shutter Angle 3 to 360° (in 0.5° steps, angle display)
Recording
Recording Format AVC-Intra200, AVC-Intra100, AVC-Intra50
AVC-LongG50, AVC-LongG25, AVC-LongG12
DVCPRO HD, DVCPRO50, DVCPRO, DV
Resolutions & Frame Rates 59.94 Hz SYSTEM MODE
1920 x 1080 / 59.94p, 59.94i, 29.97pN, 23.98pN
1280 x 720 / 59.94p, 29.97pN, 23.98pN
720 x 480 / 59.94i, 29.97p
50 Hz SYSTEM MODE
1920 x 1080 / 50p, 50i, 25pN
1280 x 720 / 50p, 25pN
720 x 576 / 50i, 25p
Variable Frame Rate 1080/59.94p: 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, and 60 fps
1080/50p: 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, and 50 fps
Sampling Frequency AVC‑Intra200/AVC‑Intra100/AVC‑Intra50/AVC‑LongG50/AVC‑LongG25/AVC‑LongG12/DVCPRO HD:
Y: 74.1758 MHz, PB/PR: 37.0879 MHz (59.94 Hz)
Y: 74.2500 MHz, PB/PR: 37.1250 MHz (50 Hz)
DVCPRO50:
Y: 13.5 MHz, PB/PR: 6.75 MHz
DVCPRO:
Y: 13.5 MHz, PB/PR: 3.375 MHz
Quantizing AVC‑Intra200/AVC‑Intra100/AVC‑Intra50/AVC‑LongG50/AVC‑LongG25: 10 bit
AVC‑LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV: 8 bit
Video Compression Format AVC‑Intra200/AVC‑Intra100/AVC‑Intra50: MPEG-4 AVC/H.264 Intra Profile
AVC‑LongG50/AVC‑LongG25/AVC‑LongG12: MPEG-4 AVC/H.264
DVCPRO HD: DV-Based Compression
DVCPRO50/DVCPRO: DV-Based Compression
DV: DV Compression
Memory Card Slot 2 x microP2
Recording Audio Signal AVC‑Intra200/AVC‑LongG50/AVC‑LongG25: 48 kHz/24 bit, 4 channel
AVC‑Intra100/AVC‑Intra50: 48 kHz/16 bit, 4 channel and 48 kHz/24 bit, 4 channel switch
AVC‑LongG12/DVCPRO HD/DVCPRO50: 48 kHz/16 bit, 4 channel
DVCPRO/DV: 48 kHz/16 bit, 4 channel
Headroom 12 dB / 18 dB / 20 dB (switchable in menu)
Monitor
LCD Monitor 3.5", approximately 1.56 million dots
Viewfinder 0.5" OLED, approximately 2.36 million dots (video display area: approx. 1.77 million dots)
Interface
Video Output 1 x 3G-SDI (BNC)
1 x HDMI (Type A)
Audio Input 2 x XLR (3-pin), high impedance, LINI/MIC switch
LINE: 4 dBu / 0 dBu (selectable)
MIC: -40 dBu / -50 dBu / -60 dBu (selectable), +48 V on/off
Audio Output 1 x 3.5 mm stereo mini jack, 100 Ohms, -16 dBV (32 Ohms load, at maximum level)
1 x 0.8" / 20 mm diameter speaker
Remote 1 x 2.5 mm super mini jack for Zoom control
1 x 3.5 mm mini jack for Focus and Iris control
USB 1 x USB 2.0 mini-B
Power Input 12 VDC (10.5 to 13.5 VDC), EIAJ type 4
General
Power Requirements 7.2 VDC (with battery)
12 VDC (with AC adapter)
Power Consumption 19.5 W (with LCD monitor on)
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Humidity 10 to 80% (no condensation)
Dimensions 6.9 x 6.7 x 13" / 176 x 171 x 329 mm (excluding protrusions)
Weight 4.9 lb / 2.2 kg (body only)
5.7 lb / 2.6 kg (including lens hood, supplied battery, and microphone holder)
Packaging Info
Package Weight 11.8 lb
Box Dimensions (LxWxH) 19.0 x 14.7 x 12.5"
