JVC GY-HM660 ProHD Mobile News Streaming Camera Price 1650

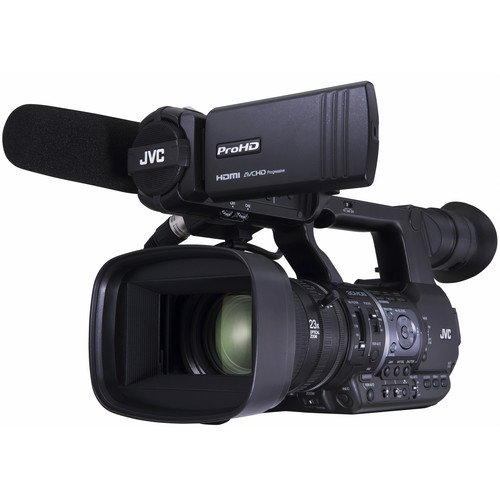

JVC GY-HM660 ProHD Mobile News Streaming Camera


JVC GY-HM620 Pro Specs
Sensor 1/3" 2.2M pixels progressive scan 3CMOS
Synchronizing System Internal
Stabilizer Optical image stabilizer
Lens Fujinon F1.6-3.0, 23x, f=4.1 - 94.3 mm (35 mm conversion: 29 to 667 mm)
Filter Diameter 72 mm
Shutter Speed 1/6 to 1/10000
Gain -6, -3, 0, 3, 6, 9, 12, 15, 18 dB, Lolux, AGC
ND Filter 1/4, 1/16, 1/64
LCD Display 3.5" (8.9 cm) 920K pixels, 16:9
Viewfinder LCOS: 0.45" (1.1 cm) 1.22M pixels, 16:9
Recording Media 2x SDHC/SDXC memory card class 6/10
Video Recording Video codec: MPEG2 Long GOP (HD), AVCHD, H.264 (SD)
File format: MOV (HD/SD: H.264), MP4 (XDCAM EX), MTS (AVCHD)
Recording Mode MPEG-2 Long GOP:
NTSC setting --
HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i, 1280 x 720/59.94p, 29.97p, 23.98p
SP mode: 1440 x 1080/59.94i
PAL setting --
HQ mode: 1920 x 1080/50i, 25p, 1440 x 1080/50i
SP mode: 1440 x 1080/50i

AVCHD
NTSC setting --
XHQ mode: 1920 x 1080/59.94p, 59.94i, 29.97p, 23.98p (50Mbps)
UHQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p (35Mbps)
HQ mode: 1920 x 1080/59.94i, SP mode: 1920 x 1080/59.94i
PAL setting --
UHQ mode: 1920 x 1080/50p, 50i, 25p (50Mbps), 1920 x 1080/50i, 25p (35Mbps)
HQ mode: 1920 x 1080/50i, SP mode: 1920 x1080/50i

SD (H.264)
NTSC setting: 720 x 480/59.94i

Proxy (H.264)
NTSC setting: LP/LV mode: 480 x 270/29.97p, 23.98p
PAL setting: LP/LV mode: 480 x 270/25p
Sampling Records 4:2:0 but has a live output of 4:2:2
Audio Recording LPCM 2ch, 48kHz/16-bit (MPEG-2 Long GOP/H.264), AC3 (AVCHD)
Video Output (1) AV output (f3.5 mm mini jack)
(1) SDI output
(1) HDMI output
Audio Input (2) XLR (MIC, +48V/LINE)
(1) f3.5 mm mini jack
Audio Output (1) AV output (f3.5 mm mini jack)
Headphone (1) f3.5 mm mini jack
Time Code Link Input/Output (1) RCA
Remote (1) f2.5 mm mini jack
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature 14 to 122°F (-20 to 50°C)
Operating Humidity 35 to 80%
Storage Humidity Under 85%
Power DC 12V (AC adapter), DC 7.2V (battery)
Power Consumption Approx. 12W (with VF and LCD monitor)
Dimensions 7 x 7.8 x 16.3" (17.8 x 19.8 x 41.6 cm)
Weight Approx. 5.3 lbs (2.4 kg)
Packaging Info
Package Weight 9.15 lb
Box Dimensions (LxWxH) 19.7 x 11.4 x 10.7"
