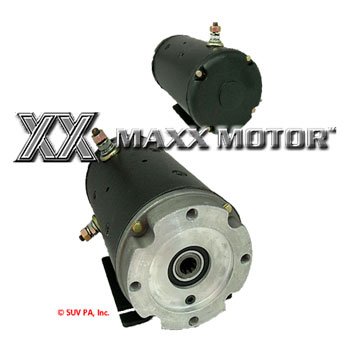

Hydraulic Pump Motor 24V// CW// 9 Spline / 7 HP

Applications: Caterpillar, JS Barnes/Haldex
Power Steering Motors in Caterpillar

Part #: 52010
 Aftermarket Motor built to OEM Specifications
Shipped directly from Distributor in Kokomo, Indiana
 Voltage: 24.00
Aftermarket
7 HP
Rotation: CW
 Field Housing Outside Diameter: 5.031 in.
 Overall Length: 10.315 in.l
 Shaft Outside Diameter: 0.984 in.
 Shaft Style: 9 Spline
 Terminal 1 Size: 3/18 - 16
 Terminal 2 Size: 3/18 - 16
 Housing Finish: Drive End is cast aluminum with a black field case.
 Weight: 35.9 lbs.

Cross References:
Prestolite: 2200943, 46-4037, MFY-4203, MFY-4203D, MFY-4203RM, MFY-4203S
JS Barnes Haldex: 2200943
Barnes Haldex 2201043
 Prestolite: MFY4203RM 464037M
WMS W4307

Replaces part #
Prestolite: 2200943, 46-4037, MFY-4203, MFY-4203D, MFY-4203RM, MFY-4203S
 JS Barnes Haldex MPN 2200943


Aftermaket:
Barnes Haldex, Caterpillar
MPN:
2200943, W4037
