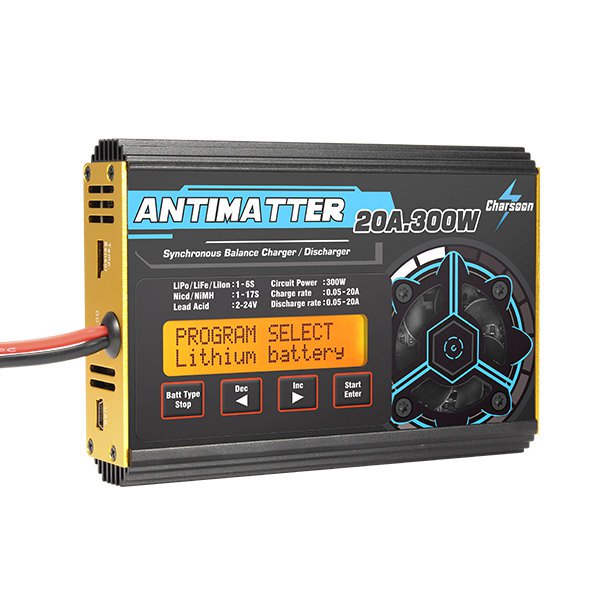

Charsoon Antimatter 300W 20A Balance Charger Discharger For LiPo NiCd PB Battery

Package Includes:
1 Charsoon Antimatter 300W charger
2 Alligator Clips +/-
1 XT60 connector charge lead
1 T connector charge lead
1 JST / Futaba Charge Lead

Product Introduction :
This Charsoon Antimatter 300W charger is a powerful charger for its size.A high power balancing charger/dis-charger that can provide up to 20A charge rates and charges to 6S Li-po/LiFe or 17S NiCd/NiMH battery.
Has great features such as storage charging, cyclic charging / discharging, 10 charge parameter memory and can also be set up as a power supply for a hot wire foam cutter.

Product Specifications :
Product Brand :Charsoon
Model : Antimatter
Input Voltage: DC: 10-28V
Charge Current: 0.05 ~ 20A
Discharge Current: 0.05 ~ 20A
Maximum Charge Capacity: 300W@input voltage>18V
Maximum Discharge Capacity: 20W
Maximum Regenerative Discharge Power Capacity: 300W
Maximum External Discharge Power Capacity: 500W@25V/20A
Current Drain For Balancing LiPoly: 350mAh/cell
Balance Accuracy: 10mV
Battery Setup Memory: 10
Lithium (Li-poly/LiIo/LiFe) Cell Count: 1 ~ 6 series
NiCd/NiMH Cell Count: 1 ~ 17 series
Pb Battery Voltage: 2 ~ 24V
Log Files Storage: 16Mbit (36 hours)
Intelligent Temperature Control: Yes
Dimensions: 140 x 95 x 27mm
Weight: 350g

Great Features:
+ High Power,High Current,High-Performance Power Conversion Circuit
Supports a wide variety of Batteries
+ This charger can be used for Lipo,Lilo,LiFe,Ni-Cd,NiMH and Pb battery.
+ Has Data Storage
Convenient 10 battery profile memories that can be saved and loaded by number.
+ Various Charging/Discharging Settings and Cycles
For lithium batteries: balance charging,normal charging,fast charging,storage,discharging,ext-discharging,charge/discharge cycling and battery monitoring.
+ NiCd/NiMH batteries: charging-auto,charging-manual,discharging,charge/discharge cycling and forming charge.
+ Pb batteries: charging and discharging.
+ Unique Lithium Battery Expanding Discharging Program
Connect the external capacity resistance,can be used as the maximum discharge power capacity - 600W(30V/20A).
+ Unique Lithium Battery Monitor Program
When used with other equipment to charge or discharge a Lithium pack,you can use the charger to monitor the per-cell voltages,battery temperature and process time. If any individual cell appears over-charged or over-discharged or the pack is too hot or the process has gone on for too long,the charge will generate an alarm sound and the related information will blink.
+ Foam-cut Drive
In this mode,the charge acts as a convenient power supply for a hot wire foam cutter.
+ Battery Interior Resistance Measurement
This charger can measure the internal resistance of the battery pack,and also can measure the per-cell internal resistance (only available for lithium battery).
+ Reverse Polarity Protection Function
This charger has protection for reversed polarity(input or output),low input voltage,battery temperature,charging capacity and time overrun.
+ Electric Motor Test Mode
This mode can be used to run-in electric motors,test motor parameters and performance,to check tolerances etc.
+ Flash Storage
The charger has a 16Mbit flash storage,which can log offline charge and discharge data in 36 hours.

Tech Note:
AC adapter and cord sold separately.
