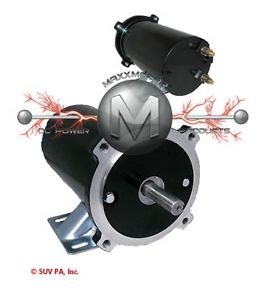

90151N Motor Replacement for Arctic and Canimex Salt Spreaders 1 HP 1800 RPM
Spreader Motor, Replaces Arctic, Blizzard, Curtis, Fisher, SnoWay, Western

Salt Spreader Motor // 12V // Bi-Directional // DBB // Permanent Magnet // 1 HP // 1800 rpm // 5/8" Full Key Way Shaft

Applications: For Artic AG6E©, AG8E©, AG10E© and Canimex Salt Spreaders

Part #: 50090

Rotation: Bi-Directional

Aftermarket Motor

Shipped from Kokomo, Indiana

Overall Length: 12.00 in.

Shaft Outside Diameter: 5/8 in.

Shaft Style: Keyway

Terminal 1 Size: 5/16 in. - 24

Terminal 2 Size: 5/16 in. - 24

Housing Finish: Comm End Cover and Drive End Plate is cast aluminum with black powder coat housing.

Weight: 17.6 lbs.

Cross References:

Arctic: 90151N

Canimex: 120Z402H, 120Z402H1, 120Z402H2, W4BB1601

Leeson: 108046, 108047, C4D17NK10B, C4D17NK68, C4D17NK6B, C4D17NK73, C4D17NK7E

Scott Motors: 4BB-01601, 4BB-1601

Replaces:

Arctic AF6E, AG8E, AG10E, 90151N

Blizzard Ice Chaser, 95755-1

Curtis SnoPro 550 Series, 1CS6E-M


Fisher Polycaster, 195755 95755-1 95755-2

SnoWay V Box Electric, 96113617 96111764

Western Tornado, 95755 9585

12 volt, Spreader, Motor

Shaft Size 5/8"

Weight: 23.5 lbs.
