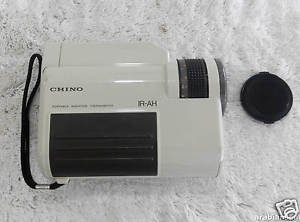

Be sure to add me to your favorites list!Check out my other items! Welcome to Arabian SeaAn online store for New, Refurbished and Used Marine Equipment and Collectable for Boats and Yachts.IR-AH Series Handheld Type Digital Radiation ThermometersThe IR-AH series is non-contact handheld type digital radiation thermometers for the measurement of temperature. The thermometers have features of a wide measuring range from -50°C to 3000°C, digital displays of the measured value in the finder and on the panel board, and storing function of the measured data. An RS-232C port is provided to transmit the measured data to a personal computer. With a Data Logging Software (sold separately) , you can analysis and manage the measured data.Data storageMaximum 1000 data can be stored. The data stored are readable on the display with index numbers for easy classification of data.Easy-to-read internal and external digital displayA measured value is digitally displayed in the finder and on the panel board.RS-232C portThe communications interface port (RS-232C) is provided to transmit the measured data to a personal computer.Signal modulationMeasurement modes of real value (real) maximum value (peak), average value (delay) and minimum value (valley) are selectable for measuring purposes.Data logging softwareThe data logging software is separately prepared for the analysis and management of the measured data.Analog output (option)The analog output of 0 to 1VDC is offered at an optional specification. By using an AC power adapter (option), the continuous measurement enabled.Other functionsVarious functions including high/low alarms, °C/°F selection, auto-power-off, battery check and user's calibration (zero/span) are available.CEAll models are complying with CE.ModelsFor medium/ high temp.IR-AHSFor high temp.IR-AHUFor low temp.IR-AHTMeasuring systemsNarrow band radiation thermometerWide band radiation thermometerTemperature ranges600 to 3000°C900 to 3000°C-50 to 1000°CDetectorsSiliconThermopileSpectral ranges0.96µm0.65µm8 to 13µmAccuracy ratingsLower than 1500°C: ±0.5% of reading ±1 digit< 1500 to 2000°C: ±1% of reading ±1 digit More than 2000°C: ±2% of reading ±1 digitLower than 200°C: ±2°C ±1 digit More than 200°C: ±1% of reading ±1 digitRepeatability1°C±1 digitTemperature drifts0.015% of reading/°CLower than 300°C: 0.15°C/°C 300 to 700°C: 0.05 of reading/°C More than 700°C: 0.025% of reading/°CResolutions1°C1°C (more than 50°C)Response time0.5 second1 secondOptical systemsFocusable lens typeCassegrain forcusable mirror typeDistance factors Measuring distance (L)/measuring diameter (D)10025040Measuring distance0.5m to∞0.7m to ∞Target sizesMeasuring distance/100(Φ, mm)Measuring distance/250(Φ, mm)Measuring distance/40(Φ, mm)CollimationDirect viewing finderLens diametersΦ30mmΦ40mmDisplayLCD 4 digits display (in the finder and on the panel board)Data storing functionUp to 1000 dataEmissivity0.10 to 1.00 (0.01 step)Signal modulationReal, Peak, Delay, Valley, Signal modulation ratio: 0 to 99 seconds, Peak hold, Valley hold, Hold after the measuring switch us turned offCommunications functionRS-232C (Data logging software: Sold separately)Operating Temperature0 to 50°CPower supplyAlkali AA (UM-3) battery 4 pieces (about 20 hours on continuous operation)Casing materialABS resinWeightsAbout 700gCEEN61326+A1, Emission: Class B Immunity: Table 1 - minimum immunity requirementShipping Inclusion 1. Used Chino IR-Ah Thermometer with Carrying Case. Batteries no included. =========================================Shipping &PackagingPolicyAll Products would be shipped with a Tracking No using services of India-Post, Fedex or India Post.Tracking No would be provided within 24 Hours of Payment Confirmation.All Products would be shipped with a Actual Value Invoice or if suggested by Customers.We use the industry standard packaging Materials for optimum safety of products. Special Care would be taken for delicate items.Shipping to Russia, Argentina, Brazil would be done using India Post and delivery time can be around 45 days after shipping. No claims would be entertained. Please ask for more details prior to making purchase.==================================PaymentPolicy100% Adherence to eCRATER and PayPal Polices.Customer Satisfaction is our Prime Goal=================================================FeedbackRequestseCRATER follows a very buyer friendly Feedback policy to ensure the best customer satisfaction.Please rate us for 5 Stars while leaving a Feedback for the products.Please Contact us if you require any help prior to leaving a feedback or you are not satisfied by product.==================================Powered by eCRATER . List your items fast and easy and manage your active items.
