NSEE PY600 AC Residential Operator Rack and Pinions Slide Gate Door Opener
More than 10 available
Details
Shipping: Australia: free (more destinations)
Sales Tax: check
Condition: Brand new
Returns: 30 days, buyer pays return shipping (more)
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

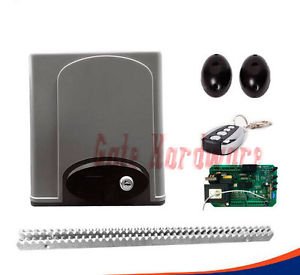

Basic Kit Includes:
1. Sliding Gate Operator (1) (Set) (110v).
2. Remote Controller (2) (PCs).
3. Internal Hex-angular Bolt (4) (PCs).
4. Internal Hex-angular Bolt (4) (PCs).
5. Left Limit Iron (1) (PCs).
6. Right Limit Iron (1) (PCs).
7. Base (1) (PCs).
8. Release Keys (2) (PCs).
9. Manual (1) (PCs).
10. 15ft of Steel Rack (5 PCs).
11. Infrared Sensors (2) (PCs).
12. Inside Control Board (1) (PCs).
13. Magnetic Limit Switch.
1. Products introduction
Please read the instructions carefully before proceeding.
MCU is supplied to control the gate operator.
Keypad / single button interface.
Photo beam safety beam interface.
User can select Auto-close function.
Manual key release design for emergency purposes.
2. Important safety information
Carefully read and follow all safety precautions and warning before attempting to install and use this automatic gate operator.
Make sure the Power supply(AC220V or AC110V) of the gate operator is suitable for the power supply in your area.
3. Main technical parameters
Type
GPY600AC
Power supply
220V, 50Hz
110V, 60Hz
Motor speed
55rpm
66rpm
Rated output power of motor
200W
Remote control operating distance
30m / 100ft (Frequency:433.92mHz)
Remote control mode
Single button
Output shaft height
58.5mm / 2.3inch
Max. gate weight
600Kg / 1400lbs
Output torque
16N·m
Limit switch
Spring limit switch or Magnetic limit switch
Noise
≤56dB
Duty cycle
S2, 15 minutes
extra remote control
20
Environmental temperature
-20°C / 68°F~+50°C / 122°F
Gate Move speed
13m / 43ft /min
15m / 50ft /min
1. Sliding Gate Operator (1) (Set) (110v).
2. Remote Controller (2) (PCs).
3. Internal Hex-angular Bolt (4) (PCs).
4. Internal Hex-angular Bolt (4) (PCs).
5. Left Limit Iron (1) (PCs).
6. Right Limit Iron (1) (PCs).
7. Base (1) (PCs).
8. Release Keys (2) (PCs).
9. Manual (1) (PCs).
10. 15ft of Steel Rack (5 PCs).
11. Infrared Sensors (2) (PCs).
12. Inside Control Board (1) (PCs).
13. Magnetic Limit Switch.
1. Products introduction
Please read the instructions carefully before proceeding.
MCU is supplied to control the gate operator.
Keypad / single button interface.
Photo beam safety beam interface.
User can select Auto-close function.
Manual key release design for emergency purposes.
2. Important safety information
Carefully read and follow all safety precautions and warning before attempting to install and use this automatic gate operator.
Make sure the Power supply(AC220V or AC110V) of the gate operator is suitable for the power supply in your area.
3. Main technical parameters
Type
GPY600AC
Power supply
220V, 50Hz
110V, 60Hz
Motor speed
55rpm
66rpm
Rated output power of motor
200W
Remote control operating distance
30m / 100ft (Frequency:433.92mHz)
Remote control mode
Single button
Output shaft height
58.5mm / 2.3inch
Max. gate weight
600Kg / 1400lbs
Output torque
16N·m
Limit switch
Spring limit switch or Magnetic limit switch
Noise
≤56dB
Duty cycle
S2, 15 minutes
extra remote control
20
Environmental temperature
-20°C / 68°F~+50°C / 122°F
Gate Move speed
13m / 43ft /min
15m / 50ft /min
