Specifications:

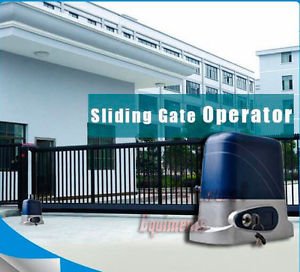

This AC powered sliding gate opener is designed to operate sliding gates up to 3000 pounds or 1300kg. It is an all in one motor and control panel, making it simple to install and extremely compact and neat.
1. Weatherproof
2. Manual Override
3. All Metal Gears
4. Metal Gear Drive
5. All in one internal Motor and Weather Proof control panel

Functions:
1. Totally integrated electrical mechanical system (excludes racks).
2. Control board interface for optional impact-proof infrared photocells.
3. Can connect flashing light and keypad and electric lock and so on.
4. Automatic delayed closing.
5. Adjustable resistance sensitivity.
6. Auto gate stop and re-open when an obstacle is encountered.
7. Wireless remote control or wired remote control are optional.
8. 24VDC sliding gate opener can connect transformer and back up battery.

Features:
1. Single button can finish all the control command (such as close, open and stop)
2. Can adjust the output power of motor
3. Can adjust the working time of motor
4. Can program the time of auto close
5. Can set auto close when restored power after power off.
6. Sliding gate opener can connect flashing light, photocell,keypad.electric lock.

Technical Specifications:
Type

PYM-A2201

Power Supply

110v AC, 60Hz / 220v AC, 50Hz

Remote Control Range

100ft / 30m

Output Shaft Height

1.7” (48 mm)

Max. Gate Weight

3000 lbs (1300 kgs)

Operating Temperature

-4⁰F±122⁰F (-20⁰C±50⁰C)


Package includes:
1 x Motor with built in control panel
2 x Remote Controls
15ft / 5m rack (steel or nylon racks is optional)
1 x set of Photo electric sensors
2 x Manual Override Keys
1 x Motor mounting base plate

If you want steel or nylon rack just leave us a comment on the order we will send you the one you specified if no comment are left we send nylon rack.

Voltage please at checkout leave us a message stating your voltage requirement we can send 110V or 220V (if the purchase is from USA and no message is left we will send 110V if the purchase is from Europe we will send 220V)
