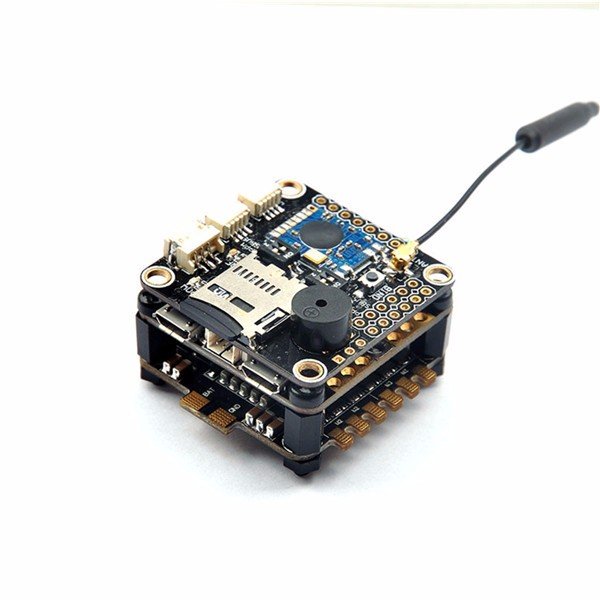

RacerCube Integrated F3 EVO 4 In 1 20A F396 ESC Frsky 8CH PPM/SBUS Receiver for X Racing Frame
Package includes:
1 F3 EVO Flight Control
1 Frsky Receiver
1 Racercube 4IN1 LittleBee ESC

Brief Description
Product Specifications:
Weight: 23 g
Size: 36mm x 36mm x 25mm
Installation hole distance: 30.5mm x 30.5mm

F3 EVO Flight Control
Integrated MWOSD and PCB board
Firmware: Cleanflight 1.13.0
Target: SP RACING F3 EVO
STM32F303 CPU, 72Mhz inc FPU
MPU9250 accelerometer/gyro/compass (connected via SPI)
BMP280 barometer
Compatible PPM/CPPM/SBUS/DSM2/DSMX Receiver
Integrate PDB supports 2s-6s Input
Frsky Receiver
Integrated F3 Flight Control BLACKBOX Functionality and External Expansion Interface
Channel: 8
Working voltage: 4-6.5V
Frequency range: 2400-2483.5Mhz
Output signal: SBUS/PPM
Dual way transmission: Yes(D8 mode)
Transmit distance: Greater than 1Km
Feedback signal: RSSI, 3S voltage (A1)
With Failsafe @Throttle 3ch
Compatible with X9D(D8 mode)/XJT (D8 mode)/DJI/DFT/DHT
Racercube LittleBee ESC:
4IN1 20A x4
F396 MCU, 48Mhz Runs BLHELI LittieBee Pro 20A firmware
Supports 3-6S Li-po
4PWM input,
Supports oneshot PWM
Only 35x35mm, mount holes 30x30mm (on new batch, the holes will bechanged to 30.5x30.5mm)
Supports damped light
no BEC output

Suitable for 120-330 wheelbase multi-rotor frame kit, especially for X and Monster DIY Frame Kit

Great Features:
- Buzzer ready
- RSSI/ VOLTAGE DETECOTR Ready
- Ultra-light integration suite,PNP, do not need cumbersome wiring
- F3_EVO FLIGHT CONTROLLER Jaw-Dropping Flight Performance
- STM32F3 chip F3 EVO flight control, supports CLEANFLIGHT/BETAFLIGHT program
- Built-in MWOSD, aircraft real-time data status real-time back to the FPV display or GOGGLES
- Built-in SD card, integrated CLEANFLIGHT BLACKBOX function, PID adjustment more at a glance
- Integrated FRSKY compatible 8-channel SBUS / PPM two-way receiver, FRSKY Taranis X9D and DJT / DFT / XJT tuner directly on the frequency can be used.
- 4IN1 ESC Little BEE 20A F396 Chip ESC Ready, BLHELI Pass-through Ready.
- Based on high-quality F396 MCU ESC, support Oneshot125 / Multishot, support Damped Light function, can be directly configured by CLEANFLIGHT.

Insured Priority Express Shipping 6-12 Business Days U.S.,U.K. orders.
Insured Standard Registered Shipping 7-20 Business Day Delivery most other Destinations.

Tech. Notes:
Use care when soldering your battery leads so as not to short out the gyro.
Manual sent with order confirmation email.
