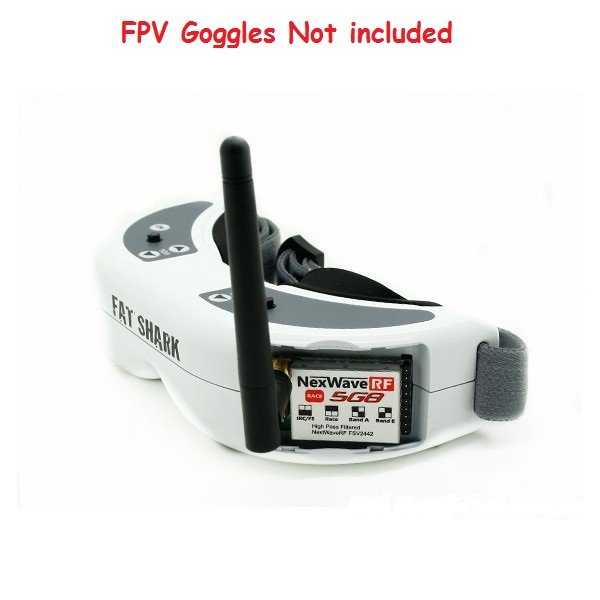

Fatshark Dominator Receiver 5.8GHz 32 Channels RX Module Race-band

Compatible with the glasses Fatshark Dominator; Dominator and Dominator V2 HD1
Number of video channels: 1
Number of audio channels: 1 (Stereo)
Uses the 5.8 Ghz band with frequency described in this document.
Supply Power: 5V
RSSI output voltage: 0.4V~2.2V
Video Format: NTSC/PAL
Antenna connectors: SMA (no internal pin on the antenna) impedance 50 ohms.
Power supply: By Fatshark Dominator goggles directly
Weight: 20g (with omni antenna)
Dimensions: 40mm (L) x 25mm (W) x 10mm (H) - add length of 35mm by counting the antenna angled 90 °

Frequency table:
0-0 Band 1 FS/IRC 5740 5760 5780 5800 5820 5840 5860 5880
0-1 Band 2 Boscam E 5705 5685 5665 5645 5885 5905 5925 5945
1-0 Band 3 Boscam A 5865 5845 5825 5805 5785 5765 5745 5725
1-1 Band 4 RaceBand 5658 5695 5732 5769 5706 5843 5880 5917

Insured Express Shipping 5-12 business days U.S.,U.K. orders
Insured Standard Registered Air Shipping 7-20 day delivery other destinations. We may have a faster service,email us for latest rate !

Package Includes:
1 Reciever 5.8GHz RaceBand 32 channels
1 Omnidirectional antenna (SMA connector) 3dB
