Immersion RC SpiroNet 8dBi LHCP Mini Left Hand Circular Polarized Patch Plate Antenna

8 available, 1 sold

Details

Shipping: Australia: $8.00 (more destinations)

Condition: Brand new

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

Description

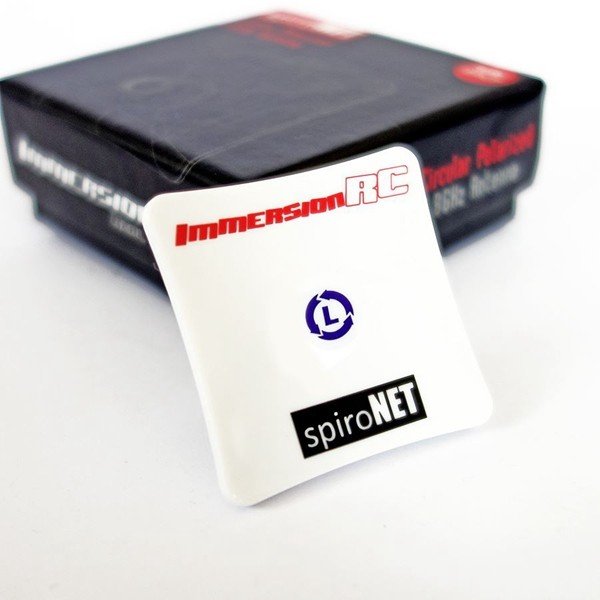

Immersion RC SpiroNet 8dBi LHCP Mini Left Hand Circular Polarized Patch Plate Antenna

Brief Description:
-This 5.8GHz Left-Hand (LHCP) Circular Polarized patch antenna was custom-designed, with no expense spared, for the FPV market. Light enough to be mounted directly onto an LCD headset, or directly onto the front of one of our single, or Duo receivers.
-Precision manufactured with very tight tolerances, *each antenna* is 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance
-SMA male connector compatible with all FatShark/ImmersionRC 5.8GHz products sold to date.

Specifications:
-Left-Hand circular polarization
-5.8GHz ISM Band
-8dBi gain
-Beam width -3dB at +/- 45 degrees (H + V) (90 degree total)
-F/B Ratio >356dB
-VSWR < 1:1.35 at 5800MHz
-Impedance 50 ohms
-Weight 7g

Package Includes:
1 Immersion RC SpiroNet 8dBi LHCP Mini Patch
