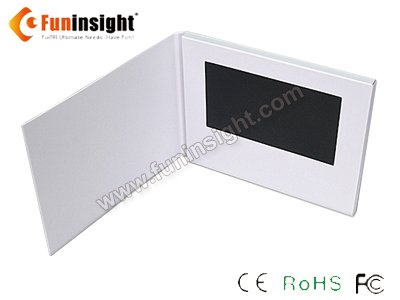

Ctreative 7’’ Video Brochure without printing VGC-070W is superb for presentations, invites, PR, direct marketing, advertising and promotions. Make an impression with a video brochure, video meets print. Funinsight is a leader in Bespoke Video Brochures.

Key Specifications/Special Features:

● Card size: A5, A4 or bespoke
● LCD screen: 7"TFT LCD screen
● Resolution: 800 x 480 pixels (16:9) / optional 1024 x 600 pixels(Full HD 1080p)
● Memory: built-in 2GB (optional 128MB-4GB)
● Interface: built-in mini-5 PIN, 2.0 USB port for uploading files and charging
● Speaker: built-in 8 OHM 2W speaker
● Video format: MP4,WMV,AVI,MPG,FLV,MOV,3GP,ASF,VOB,MPG2,VCD,DAT,MPG,RMVB,RM
● Switch: built-in magnetic switch. Video can be auto start on opening the card
● Buttons: On/Off, Play/Pause, Previous/Next or Volume up/down
● Boot logo: support a boot logo of the same pixels with the screen size.
● Battery: built-in rechargeable Li-ion battery 3.7V 1000mAh. Lifespan 1.5-3 hours
● Accessories: USB cable
● G.W.: 0.37KG

Memory Options

Depending on the device variant and your video files, the flash memory size is optional up to 4GB. Below information will help you choose the suitable memory.

Flash Memory Video Duration (based on 4.3" Screen)
128MB 7 minutes
256MB 15 minutes
512MB 30 minutes
1GB 1 hour
2GB 2 hours
4GB 4 hours

Button Options

The standard Video Brochure has a magnetic switch, so it can autoplay videos once unfolded. It can be with multi-button with specific functions like power on/off switch, play/pause, play/FF, pause/REW, forward, backward, volume up, volume down, rewind, fast forward, video selection, etc. Buttons can be placed below the screen or on the screen left/right side. It takes a maximum of 10 buttons.

Printing Options

Brochures can be printed with 4 colors (CMYK) or Pantone (PMS) and gloss or matte lamination as standard. Printed material can be folded, varnished, perforated, or even die-cut into shapes to meet your requirements. We can print brochures on 80gsm uncoated bond paper or on high quality coated matt or gloss paper from 90gsm to 300gsm digitally or lithographic.

Special printing effects:
● Embossing/Debossing ● Spot UV Coating ● Gold/Silver foil hot stamping ● Laser Engraving

China Video Brochure Printing Options

Artwork & Templates

Use our Video Brochure layout templates to insure the correct size, trim, bleed and formatting before printing. It's easy to add logos, custom graphics, and text. Download standard templates at http://www.fun-tek.com/downloadlist.asp?i=4

Operating Instructions

1. When you open the Video Card, it will automatically play the video loop playback. Once it’s closed, it will stop playing the video.
2. Charge: First, USB ties is inserted to computer and then insert to the card USB interface, which the battery could be charged. During the charging process, the card is closed. The charging time is 3~4 hours.
3. When using the card, it cannot be blended, patted and dropped.
4. You must switch off the video firstly and then connect with the computer.
5. When loading the videos, the video files could be stored to the VIDEO Folder of the removable Disk. We also could copy the data of the LCD card to the computer or U Disk.

Packaging & Shipping

Packaging Detail: 1 piece/EPE foam bag, 80 PCS/CTN. NW/GW: 12KGS/13KGS. MEAS: 47.5*30*37.5cm
Production time: 7-10 working days after received sample approval and 30% deposit.
Shipping options: 3-5 days by express UPS, FedEx, DHL, TNT, EMS, Aremax or 15-30 days by ocean.

Packaging & Shipping

For the best quote, please tell us the following details:
Which size of LCD screen you want?
How big memory you need?
What is your target quantity?
Then for the rest features, we can quote you based on our standard configuration.
Contact us right now for your own customized video brochure.

Note:
We have a complete design and engineering team to help you with your special project. Contact us for more information. Samples can be provided as per your demand.
