Eachine LCD5802S 5802 40CH Race-band 5.8G 7 Inch Diversity Receiver Monitor with Built-in Battery

Brief Description:
Product Brand : Eachine
Product Name: LCD5802S Monitor
Built-in 5.8Ghz Dual diversity receiver automatically searches for the best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V
Work status OSD display : RSSI indication ; Battery indicator;Channel indication
Available key for automatic signal search
Supports : English menu
Sensitivity: -90dBm
Screen size:7”
Screen type:TFT LCD Screen/long life, LED backlight
Resolution: 800x480
Brightness: 600cd/m2
View Angle:140/120degree (Horizontal/Vertical)
Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)
Working Voltage: DC 7~16V
Power Consumption: max 650 mA @12V
Battery charging current : 850mA @12V ( max )
Working temperature: -10℃~+ 65 ℃
Connectors:RP-SMA female(outer needle)
Antennas Connectors:RP-SMA male (inner hole)

Features:
Built-in Dual Receiver Automatically searches for best reception Automatic Antenna Switching
Dual buffered AV outputs
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small, light weight, durable
5 Bands and total 40 Channels
Built-in battery , easy to carry and outdoor use
Available key for automatic signal search,Simple operation
Work status OSD display: Device working condition.
Tech Note: It can not receive 2 different channels at the same time

Priority Direct Mail 6-9 business days U.S. , U.K. & Australia
Insured Standard Registered Shipping 7-20 day delivery and most other destinations
We have faster delivery times available,email us for latest rates !

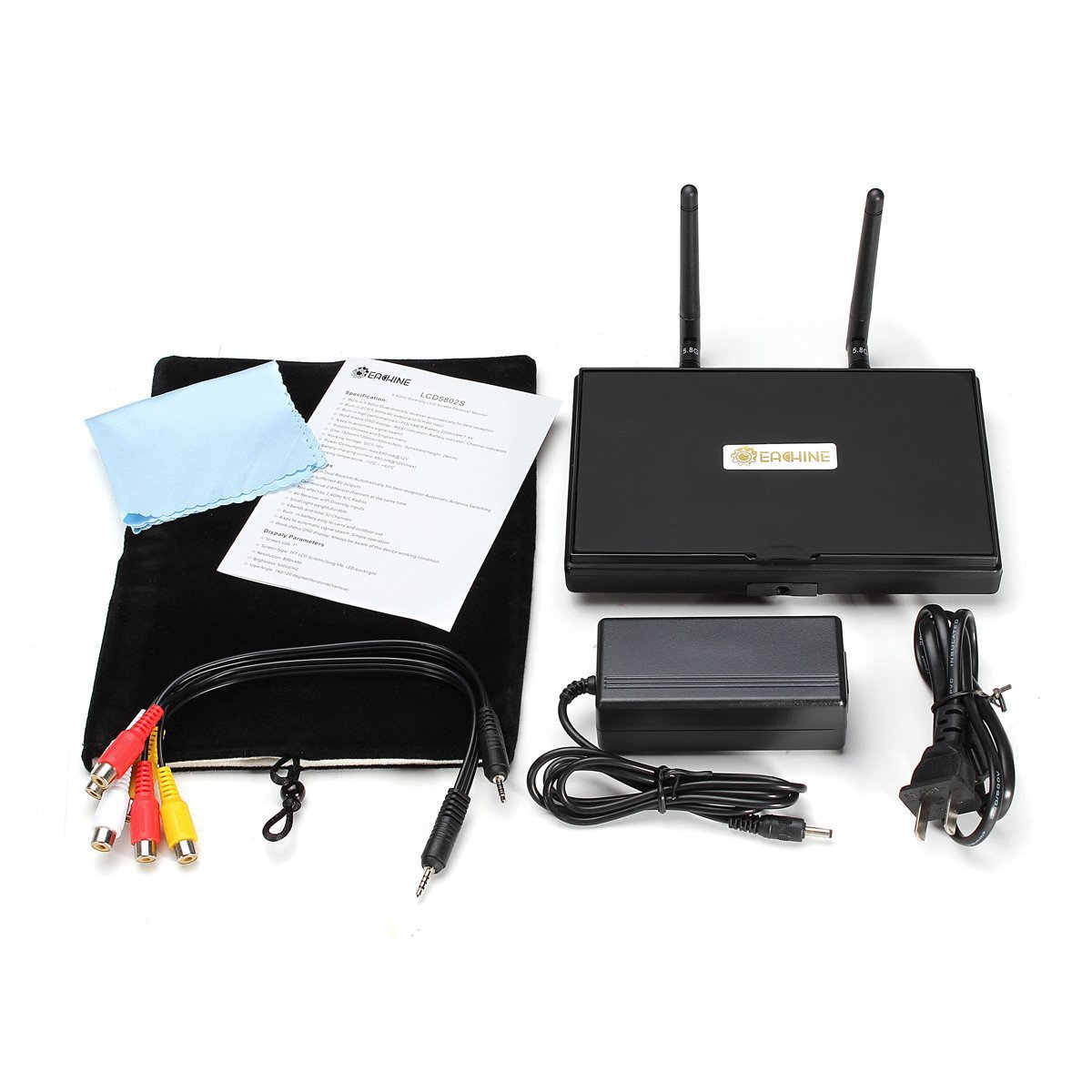

Package Includes:
1 7" LCD Screen Receiver Monitor with built in Rechargeable Battery
2 5.8G Antenna
2 AV Cable
1 Charger
