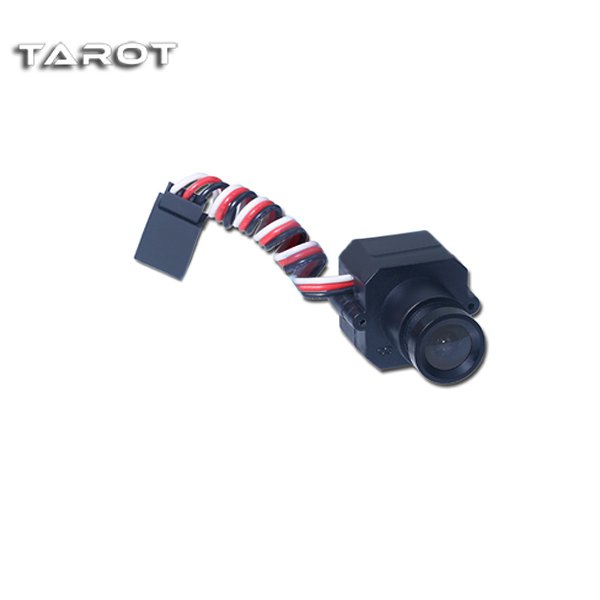

Tarot 12V 600TVL 120° 2.8mm FPV Camera TL300M PAL For RC Quadcopters

Brief Description:
TAROT custom 600TVL mini HD color camera (FPV aerial camera) 2.8MM using 120-degree whole glass wide-angle lens focal. Suitable for mini200 / 250/300 mini quadcopters, FPV model aircraft aerial field, monitoring. Products are of small size, built-in step-down module, can be directly connected 3S 11.1V lithium polymer battery.
This camera easily interfaces to Fatshark 250mW transmitter too.

Product Specifications :
- Product Brand : Tarot
- Product NO. :TL300M
- Lens: 2.8mm
- Camera Angle:120°
- Definition: 600TV Lines (HD)
- Effective pixels: PAL = 720 (H) × 576 (V) / NTSC = 720 (H) × 487 (V)
- Video system: PAL
- Sensitive chip: 1/3 inch HD Color CMOS
- Video Output: 1.0Vp-p / 75Ω
- Minimum illumination 0.008Lux (ultra low-light)
- Power consumption: 40MA ± 10%
- Operating voltage: DC5-15V ± 10%
- Synchronization System: Internal Synchronization
- SNR: >50dB
- An electronic shutter (N) 1 / 60-1 / 10000s, (P) 1 / 50-1 / 10000s
- Working temperature: 0 degree ~ 45 degree
- Application : For mini 200/250/300 size mini quadcopters.

Here is the wiring instructions,very simple set up:
- Red DC12V power input connection
- Black ground wire connected to the negative power supply and video
- White connected AV video signal output

Priority Direct Mail 6-9 business days U.S. & Australia
Standard Registered Shipping 7-20 day delivery U.K.other destinations

Package Includes:
1 Tarot 600TVL mini HD color camera (21* 26*30mm ± 3mm) 15g
