12.7mm SATA 2nd Hard Drive SSD HDD Caddy for ASUS A55V A85V swap UJ8C0 DVRTD11RS

Description:

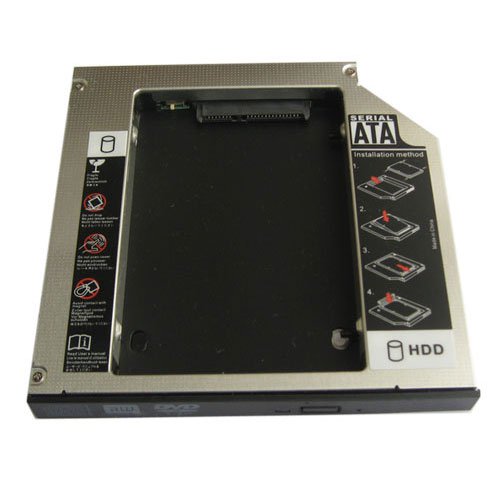

Brand New Universal 12.7mm SATA to SATA 2nd HDD HARD DISK Drive Caddy
This SATA Hard Drive Caddy/Adapter/Bay fits following laptops:
This SATA Hard Drive Caddy/Adapter/Bay can fits following Laptop:
ASUS A55V A85V swap UJ8C0 DVRTD11RS
HP Compaq 6530b Notebook PC
HP Compaq 6535b Notebook PC
HP Compaq 6730b, 6730s Notebook PC
HP Compaq 6735b, 6735s Notebook PC
HP Compaq 6820s, 6830s Notebook PC
HP EliteBook 6930p Notebook PC
HP EliteBook 8440p, 8530p, 8540p Notebook PC
HP EliteBook 8440w, 8530w, 8540w Mobile Workstation
HP EliteBook 8730w, 8740w Mobile Workstation
HP ProBook 6440b Notebook PC
HP ProBook 6445b Notebook PC
HP ProBook 6450b Notebook PC
HP ProBook 6455b Notebook PC
HP ProBook 6550b Notebook PC
HP ProBook 6555b Notebook PC

DELL XPS STUDIO 14 15 17 SERIES
Dell Studio 15, 17, 1537, 1737 Dell Studio 1435 1440 1457 Dell Studio 1735 1737 1745 1747 Dell Studio XPS 1640 1645 Dell Studio 1535 1536 1537 1555 1557 all use 12.7mm(Height) Slot Load SATA Drive

Dell XPS L502X L501X
Lenovo IdeaPad Y450 Y460 Y530
HP elitebook 8440, 8530p,8540p,HP EliteBook 6930p 8440p notebook PC',8440w,8530w,8540w,8730w,8740w,mobile workstation

HP Probook 4410s 4411s 4416s 4321s 4421s 4310s 4431s
Sony Viao F series, Such as VPCF112FX/B, VPCF11JFX/B, VPCF11MFX/B and VPCF1190X CTO,

Compaq Evo N200, N400c, N410c, N800c, N800v, N800w, N600c, N610c, N610v, N620c; M300, M700
Presario 2800

HP Business Notebook: NC6000 NC8000 NW8000,NX5000 Series
Condition: New
Warranty: Full One Year

SATA 2ND Hard Disk Drive HDD caddy/adapter for any other Dell Laptop that uses 12.7mm height DVD dirve with SATA connector to the motherboard. It works with SATA Hard drive, and SSD (Solid State Drive) as well.
Dimensions:128.0(W)mmx12.7(H)mmx129.0(D)mm
HDD Interface: SATA
Laptop/ Mother Board Interface: SATA

This item will replace the following drive DVD model number and increase your HDD volume by adding a 2nd HDD:
GSA-GT30L,GSA-T30N,GSA-T30L,GSA-T50N,GSA-T50L, TS-L633, GSA-GT20L UJ-875A,AD-7640S etc DVD Burner drive.

This item is come with a hdd caddy and a Universal faceplate,some laptops need to use the original dvd drive's bracket,and you can remove the faceplate to the caddy.
1. Fast & Reliable connection, just as the primary HDD
2. Fully integrated into laptop, no cables/PSU/software driver needed
3. Dual boot, Support installation of 2nd operating system on the 2nd HDD and boot selection.

Installation steps:

1. Unpack the hard drive, lift the hard drive dacaddy retaining latch, The screws to the hard drive.
2. Insert the hard drive into the hard drive caddy.
3. Slide the hard drive into the connector until it locks into place.
4. Lower the hard drive caddy retaining latch until it snaps closed.

Package Included:

SATA 2nd HDD Caddy for SATA notebook HDD (For 2.5" HDD,not include hard drive)
