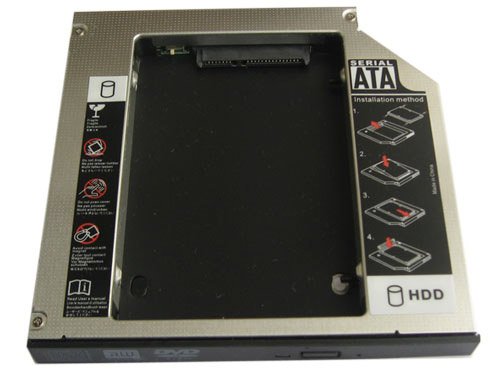

2nd hard disk drive HDD SSD Caddy For ACER ASPIRE 9300 9400 5630 5550 TS-L632H

Brand New 12.7mm SATA to IDE/PATA 2nd Hard drive Universal Caddy/Bay/Adapter

Dimensions:128.0(W)mmx12.7(H)mmx129.0(D)mm
Fit models:

ACER ASPIRE 9300 9400 5630 5550 5570 5570z 3680 2480 5050 5600 5100 3000 5000 5520 3680 3050 4315 7000 3260 3680 4420 5040 5920 7520 1650z 5720z

This item will replace the following drive DVD model number and increase your HDD volume by adding a 2nd HDD:
GSA-T20N,GSA-T20L,GSA-T40N,GSA-T40L,TS-L632H,TS-L462,UJDA760,UJ-850,UJ-861,UJ-870 etc.
2.5"HDD Interface: SATA
Laptop/ Mother Board Interface: IDE/PATA

1. Fast & Reliable connection, just as the primary HDD
2. Fully integrated into laptop, no cables/PSU/software driver needed
3. Dual boot, Support installation of 2nd operating system on the 2nd HDD and boot selection

Installation steps:
1. Unpack the hard drive, lift the hard drive dacaddy retaining latch, then screws to the hard drive.
2. Insert the hard drive into the hard drive caddy.
3. Slide the hard drive into the connector until it locks into place.
4. Lower the hard drive caddy retaining latch until it snaps closed.

Package Content:
1 X SATA 2nd HDD Caddy for SATA notebook HDD (2.5" HDD)
