2nd hard drive HDD Caddy Adapter For Fujitsu Lifebook S6120 N3511 T4220 S6220

Description:

Brand New Universal 12.7mm PATA/IDE to SATA 2nd HDD HARD DISK DRIVE caddy
This SATA Hard Drive Caddy/Adapter/Bay fits following laptops:
Fujitsu s6210 s6220 s6230 laptop
Fujitsu LifeBook 3000 3010 3700 C2230 4215 4220 4010 280 270 200 420 430 series laptop
Fujitsu LifeBook 765 765DX 755TX 735TX 690TX 665TX 675 Laptops.
Fujitsu LifeBook S2110 , LifeBook S2210 , LifeBook S6230 , LifeBook S6240 , LifeBook S6311, LifeBook S6310
LifeBook S7111 , LifeBook S7110 , LifeBook P7210 , LifeBook T4020 , LifeBook T4210 , LifeBook T4215
LifeBook T4220 , LifeBook E8110 , LifeBook E8210 , LifeBook E8310 , LifeBook E8410 , LifeBook C1410 , LifeBook C1321
HP Compaq 6710b 6715b 8510w 8510p

SATA 2ND Hard Disk Drive HDD caddy/adapter for all uses 12.7mm height DVD dirve with IDE connector to the motherboard. It work with SATA Hard drive, and SSD (Solid State Drive) as well.
This item will replace the following drive DVD model number and increase your HDD volume by adding a 2nd HDD: GSA-T20N,GSA-T20L,GSA-T40N,GSA-T40L,TS-L632H,TS-L462,UJDA760,UJ-850,UJ-861,UJ-870,etc.
HDD Interface: SATA (2.5" sata or ssd drives).
Laptop/ Mother Board Interface: IDE/PATA

1. Fast & Reliable connection, just as the primary HDD
2. Fully integrated into laptop, no cables/PSU/software driver needed
3. Dual boot, Support installation of 2nd operating system on the 2nd HDD and boot selection.

Installation steps:

1. Unpack the hard drive, lift the hard drive dacaddy retaining latch, The screws to the hard drive.
2. Insert the hard drive into the hard drive caddy.
3. Slide the hard drive into the connector until it locks into place.
4. Lower the hard drive caddy retaining latch until it snaps closed.

Package Included:

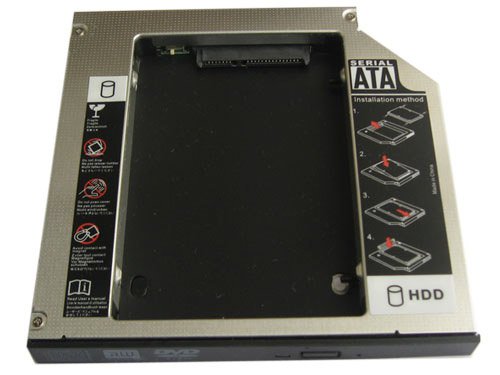

1 X SATA 2nd HDD Caddy (come with the face plate,for 2.5" HDD,does not include hard drive)
