ImmersionRC Uno2400 2.4GHz 13CH 250mA Filtered NexWave Receiver
Description: User Manual
Brand Name:ImmersionRC
Item Name: Receiver
Sensitivity (first snow): -94dBm
Sensitivity (lost syncs): -106dBm
Length: 85mm
Width: 75mm
Height: 25mm
Weight: 170g
Power Requirements: 6v – 16v
Power Consumption: ~240mA
Connector:SMA

Frequency:
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band 1
Lawmate 2410 2430 2450 2470 2370 2390 2490 2510
Band 2
Airwave 2414 2432 2450 2468 - - - -
Band 3
EU Band 2370 2396 2410 2430 - - - -
Band 4
NexWaveRF
USA (US) 2396 2396 2410 2430 - - - -

Features:
Coupled with a UHF LRS (Long Range Up-link), ranges of tens of kilometers were easily achievable.
The ‘Free Space Loss’ on 2.4GHz is much lower than it is on 5.8GHz, meaning signals go further, with the same power transmitted.
13 Channel support, Lawmate, Airwave, and International bands
Exclusive high-quality NexWaveRF receiver technology
Triple A/V output, for three viewing/recording devices
Dual-button user-interface, and remote control from the groundstation
Several km range with 10mW CE-legal transmitters

Priority Direct Mail 6-9 business days U.S. & Australia Orders
Standard Registered Air Shipping 7-20 day delivery U.K. and other destinations.

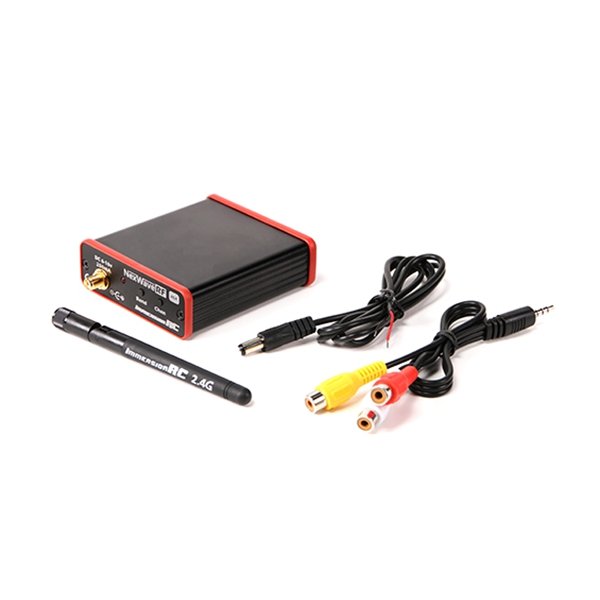

Package Includes:
1 Uno2400 Receiver
1 2.4GHz antenna
1 DC power cable to soldered ends
1 3.5mm Male to 3x Phono cable
