New 12.7mm 2nd SATA HDD Caddy For IBM Lenovo Thinkpad T420 T520 W520 W510 T510

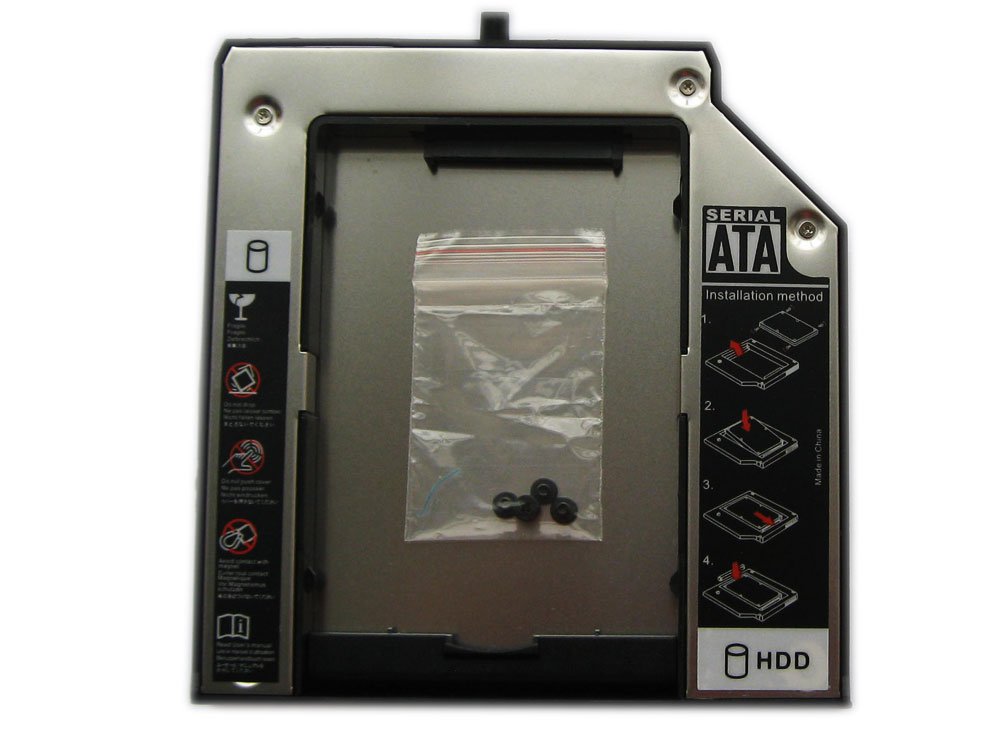

Brand New Universal 12.7mm SATA to SATA 2nd HDD HARD DISK Drive Caddy
This SATA Hard Drive Caddy fits the following laptops:
IBM ThinkPad T420 T420i
IBM ThinkPad T510 T510i T520 T520i
IBM ThinkPad W510 W520
IBM ThinkPad R400 R500
IBM ThinkPad W700 W700ds W701 W701ds

(Remarks: For below model laptops:
IBM Lenovo ThinkPad T400 T400s T410 T410s T500 W500 W700
IBM Lenovo ThinkPad T410si T410i T420s T420si T430s T430si , ThinkPad x200 x201 x220 UltraBase
Please buy the 9.5mm thickness caddy.)

Dimensions:128.0(W)mmx12.7(H)mmx129.0(D)mm

1. Fast & Reliable connection, just as the primary HDD
2. Fully integrated into laptop, no cables/PSU/software driver needed
3. Dual boot, Support installation of 2nd operating system on the 2nd HDD and boot selection

Installation steps:
1. Unpack the hard drive, lift the hard drive dacaddy retaining latch, then screws to the hard drive.
2. Insert the hard drive into the hard drive caddy.
3. Slide the hard drive into the connector until it locks into place.
4. Lower the hard drive caddy retaining latch until it snaps closed.

HDD Interface: SATA
Laptop/ Mother Board Interface: SATA

Package Content:
1 X SATA 2nd HDD Caddy for SATA notebook HDD (2.5" HDD)
