Combo Item:
- HP P7-1100 "Hibiscus" motherboard
- AMD A6-3600 APU
- HP HS/Fan for "Hibiscus" motherboard


Save Big With Combo Discounts!


Brand: HP / Pegatron
Model: AAHD3-HB (Hibiscus)
P/N: 655590-001

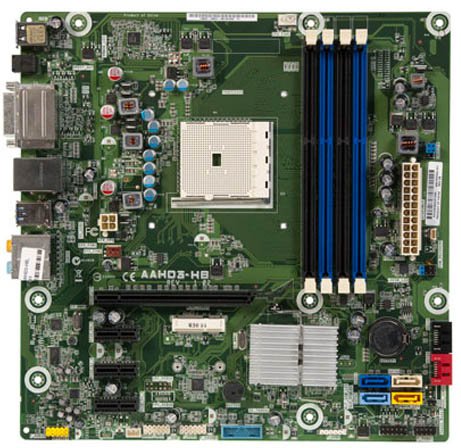

Motherboard description
Motherboard name: AAHD3-HB
HP/Compaq name: Hibiscus

Form Factor
uATX: 24.3 cm (9.6 inches) x 24.3 cm (9.6 inches)

Chipset
AMD Hudson-D3 FCH

Front-side bus speed
100 MHz UMI (Unified Media Interface)

Processor upgrade information
65W to 100W (processor dependent)
Socket type: FM1

Motherboard supports the following processor upgrades:
AMD A8-3850 (Liano) quad core
AMD A8-3820 (Liano) quad core
AMD A8-3800 (Liano) quad core
AMD A6-3670K (Liano) quad core
AMD A6-3650 (Liano) quad core
AMD A6-3620 (Liano) quad core
AMD A6-3600 (Liano) quad core
AMD A4-3400 (Liano) dual core
AMD E2-3200 (Liano) dual core

Memory upgrade information
Dual channel memory architecture
Four 240-pin DDR3 DIMM sockets
Supports the following:
PC3-10600 (DDR3-1333)
PC3-12800 (DDR3-1600)
PC3-14400 (DDR3-1866)
Non-ECC memory only, unbuffered
Supports 1 GB, 2 GB or 4 GB DIMMs
Supports up to 4 GB on 32-bit* systems
Supports up to 16 GB on 64-bit systems

Integrated Graphics
Radeon HD 6370D, 6410D, 6530D or 6550D Graphics (model dependent based on processor)
Supports PCI Express x16 graphics cards
Two DVI-D ports (Both ports can be used at the same time)

Audio
Integrated IDT 92HD89E Audio
Built-in High Definition 7.1 channel audio
Audio codec: IDT 92HD89E

LAN: 1000-Base-T
Interface: PCI Express x1
Technology: Realtek RTL8111E gigabit ethernet controller
Data transfer speeds: up to 10/100/1000 Mb/s
Transmission standards: 1000-Base-T Ethernet

Expansion Slots
PCI-Express Generation 2 speed
One PCI Express x16
Three PCI Express x1
One PCI Express mini card

Internal Connectors
1x ATX power connector
1x ATX CPU power connector
1x System fan connector
6x SATA 3.0 connectors
1x ROM recovery connector
1x Internal SPDIF output connector
1x Front panel audio connector
1x Chassis speaker connector
1x FDO connector
1x Front panel connector
4x USB 2.0 connectors
2x USB 3.0 connector



HP HS/Fan is included.
AMD APU is included.

I/O shield is not included.

Hardware was pulled from a working machine. Item is sold as-is. All sales are final. No returns are accepted on this Clearance Item.

Pictures for reference only. Unit does not come with original box or other accessories.
