$139.90 Add to Cart

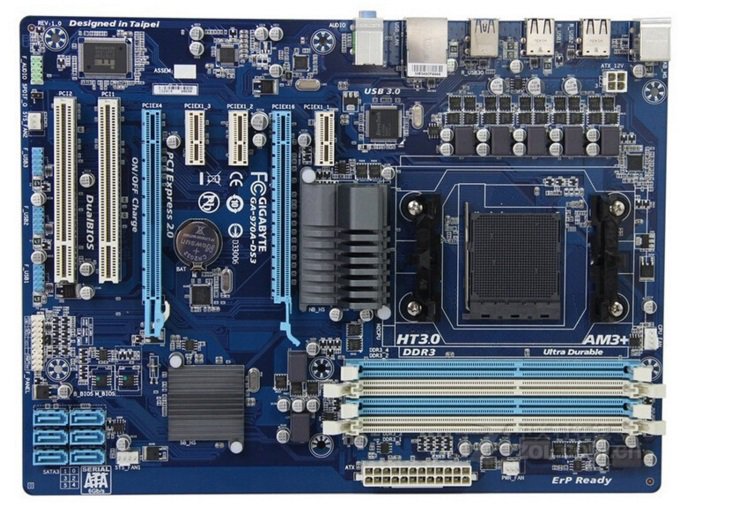

New motherboard Gigabyte Hd VIDEO Socket GA-970A-DS3 DDR3 Socket AM3 USB 3.0 32GB

More than 10 available

Details

Shipping: Australia: $2.00 (more destinations)

Condition: Brand new

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

Description

Gigabyte GA-970A-DS3 detailed parameters

Motherboard chipset
Processor Specifications
Memory Specifications
Expansion Slots
I / O interface
Plate
Software Management
Other parameters
Warranty Information

Motherboard chipset

Integrated chip card / card
Chip manufacturers AMD
Main Chipset AMD 970
Description AMD 970 chipset Northbridge + SB950 Southbridge chipset
No graphics chips
Audio chip Realtek ALC887 8-channel audio chip
LAN chip onboard Realtek RTL8111E Gigabit Ethernet

Processor Specifications

AMD CPU platform
CPU type FX / Phenom II / Athlon II
CPU socket Socket AM3 +
Supports a number of CPU

Memory Specifications

Memory Type DDR3
4 × DDR3 DIMM memory slots
The maximum memory capacity of 32GB
Memory description support dual channel DDR3 2000 (OC) / 1866/1600/1333 / 1066MHz memory

Expansion Slots

PCI-E 2.0 graphics slot standard
PCI-E slot 2 × PCI-E X16 graphics slot
3 × PCI-E X1 slot
PCI slot 2 × PCI slots
SATA interface 6 × SATA III interface

I / O interface

USB interface 12 × USB2.0 interface (6 Built +6 back); 2 × USB3.0 interface (backplane)
PS / 2 port PS / 2 mouse, PS / 2 keyboard port
Other interfaces 1 × RJ45 network interface
Audio Interface

Plate

Mainboard ATX form
Dimensions 30.5 × 22.5cm

Software Management

Performance of two 32Mbit flash BIOS
Use of licensed AWARD BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Other parameters

Audio effects are not supported HIFI
A 4-pin power connector, a 24-pin power connector
4 + 1 phase power mode
RAID function supports RAID 0,1,5,10, JBOD
Hardware Monitoring System voltage detection
CPU / System temperature detection
CPU / System / Power fan speed detection
CPU overheating warning
CPU / System / Power fan fail warning
CPU / system fan speed control
Other features support for Microsoft Windows 7 / Vista / XP operating system

Maximum Ram Capacity:32 GBChipset Manufacturer:AMD
Products Status:StockExpansion
Slots:PCI Express X16Brand
Name:GigabyteGraphics Card Type:Non-IntegratedPackage:NoSocket Type:Socket AM3+Application:DesktopPorts:USB 2.0,USB 3.0,PS2,EthernetWith CPU:NoCPU Type:AMDForm Factor:ATXHard Drive Interface:SATA IIIItem Condition:UsedMemory Type:DDR3Memory channel:DoubleModel Number:GA-970A-DS3
