$18.17
Add to Cart

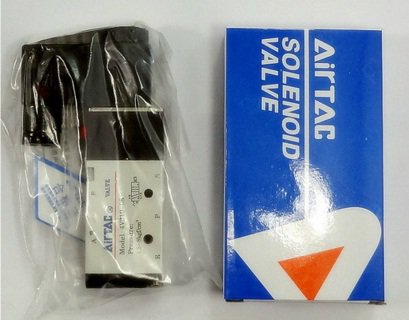

5 Way 2 Position Airtac Electric Solenoid Valve 4V210-08 DC 24V DC12V AC110V AC220V ,1.4" Port Size
More than 10 available
Details
Shipping: Australia: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Model
4V210-08
Position and way NO.
2/5 way
Effective area
16mm2(CV=0.89)
Port size
Air inlet=Air outlet=G1/4"
Fluid
40 micron filtered air
Operation
Inside pilot type
Operating pressure
0.15~0.8MPa
Max.proof pressure
1.2MPa
Temperature
5~50 C
Allowable boltage
±10% of rated voltage
Power consumption
AC:2.5VA DC:2.5W
Coil insulation &protection grade
Class F.IP65
Electrical entry
connector
Highest action frequency
5 cycle/second
Shortest excitation time
0.05 second
Voltage
DC12V DC24V AC110V AC220V
Package
1 x solenoid valve
4V210-08
Position and way NO.
2/5 way
Effective area
16mm2(CV=0.89)
Port size
Air inlet=Air outlet=G1/4"
Fluid
40 micron filtered air
Operation
Inside pilot type
Operating pressure
0.15~0.8MPa
Max.proof pressure
1.2MPa
Temperature
5~50 C
Allowable boltage
±10% of rated voltage
Power consumption
AC:2.5VA DC:2.5W
Coil insulation &protection grade
Class F.IP65
Electrical entry
connector
Highest action frequency
5 cycle/second
Shortest excitation time
0.05 second
Voltage
DC12V DC24V AC110V AC220V
Package
1 x solenoid valve
CN, Zhejiang
