$334.36
Add to Cart

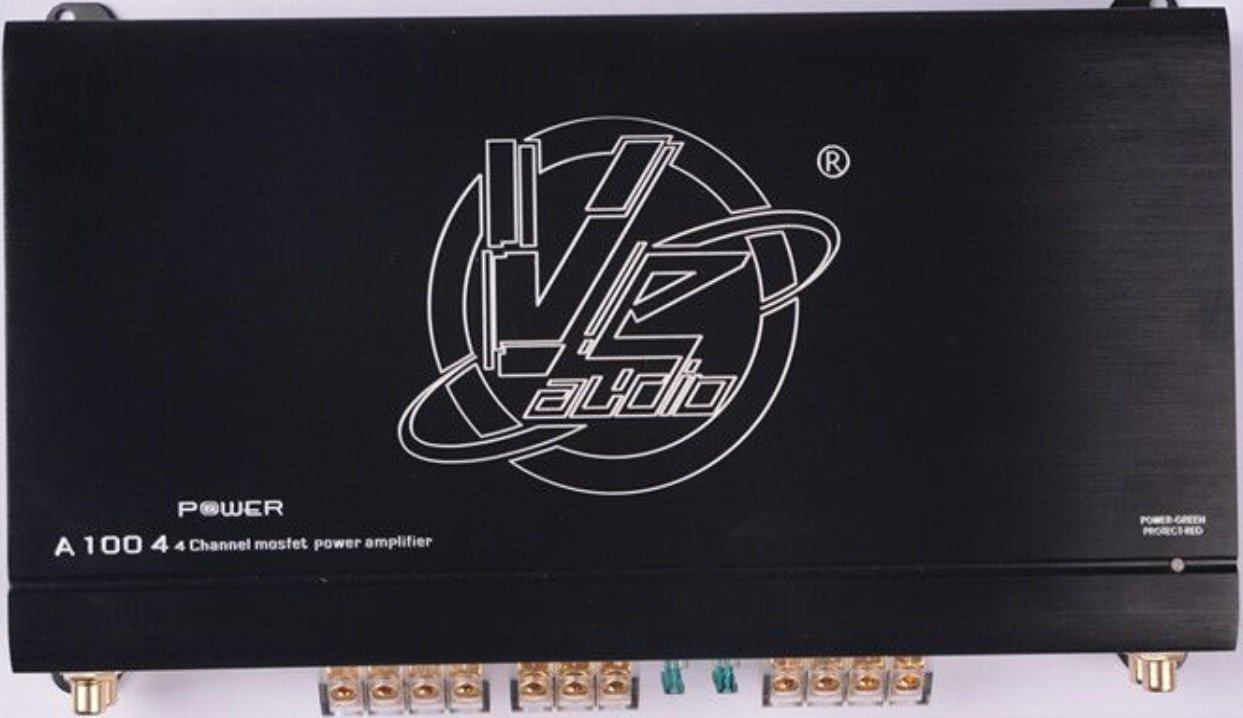

VE-Audio AB100.4 640w 4 Channel Sound Quality Amplifier VE Audio
10 available
Details
Shipping: Australia: $115.00 (more destinations)
Sales Tax: check
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
VE Audio
The Car Audio of High Fidelity
Design By USA, Made in China
Ratings by Manual-
100w x 4 4Ω 14.4v 1%THD
160w x 4 2Ω 14.4v 1%THD
320w x 2 4Ω 14.4v 1%THD
THD- 90dB
Inp. Sens.- 200mV - 8V
Fuse- 30Ax2
Dimensions- 11.42" x 5.91" x 1.89"
Power Supply- 7-16V
Buildhouse Tested Data-
94w x 4 4Ω 13.8v 1%THD
112w x 4 4Ω 13.8v 10%THD
139w x 4 2Ω 13.8v 1%THD
157w x 4 2Ω 13.8v 10%THD
296w x 2 4Ω 13.8v 1%THD
338w x 2 4Ω 13.8v 10%THD
Inp. Sens.- 183mV - 8.0V
THD- 0.36%
FR- =/-2dB 5Hz-50KHz
SNR- 72dB
Power Supply- 7.3-16.0v
Idle Consumption- 800mA
Torture Test Parameters-
Shorted Supply to 1.3V - PASS
Overload to 0.47Ω - PASS
Test at 4Ω Bridged 24hrs nonstop - PASS. No protection engaged.
18.0v, 0.75Ω loaded, max power, 24hrs pulse test non-stop- PASS. No damage detected.
Protection Parameters-
Thermal- 85C +/- 5C
Thermal Recover- -8C - -15C from 85C +/- 5C
Over V- 16V
Under V- 7V
Warranty- 1 Yr from date of purchase.
The Car Audio of High Fidelity
Design By USA, Made in China
Ratings by Manual-
100w x 4 4Ω 14.4v 1%THD
160w x 4 2Ω 14.4v 1%THD
320w x 2 4Ω 14.4v 1%THD
THD- 90dB
Inp. Sens.- 200mV - 8V
Fuse- 30Ax2
Dimensions- 11.42" x 5.91" x 1.89"
Power Supply- 7-16V
Buildhouse Tested Data-
94w x 4 4Ω 13.8v 1%THD
112w x 4 4Ω 13.8v 10%THD
139w x 4 2Ω 13.8v 1%THD
157w x 4 2Ω 13.8v 10%THD
296w x 2 4Ω 13.8v 1%THD
338w x 2 4Ω 13.8v 10%THD
Inp. Sens.- 183mV - 8.0V
THD- 0.36%
FR- =/-2dB 5Hz-50KHz
SNR- 72dB
Power Supply- 7.3-16.0v
Idle Consumption- 800mA
Torture Test Parameters-
Shorted Supply to 1.3V - PASS
Overload to 0.47Ω - PASS
Test at 4Ω Bridged 24hrs nonstop - PASS. No protection engaged.
18.0v, 0.75Ω loaded, max power, 24hrs pulse test non-stop- PASS. No damage detected.
Protection Parameters-
Thermal- 85C +/- 5C
Thermal Recover- -8C - -15C from 85C +/- 5C
Over V- 16V
Under V- 7V
Warranty- 1 Yr from date of purchase.
