Smarty Touch Performance Chip for 98.5-12 Dodge Ram Cummins 5.9/6.7
Smarty Touch Features:
4,3" Touch Display. Resolution 480 x 272 - 16.3 million colors.
Four dashboards, each configurable with five different gauge layouts as shown in the additional images.
Freely configurable ranges for the gauge(s).
Two programmable alarms (high and a low range) can be configured for each PID shown in your display.
Audible and/or visible alarms can be configured.
Configured ranges are also displayed through colored bars in all digital gauges.
Configurable PID refresh speed.
Each gauge stores, updates, and displays the max reached PID value continously.
Recorded max values can be reset at any time.
Customizeable display background.
Adjustable sound feedback for alarms.
Supports over 300 SAE and Proprietary PID's depending on the year model of the truck.
Works on all Dodge Cummins Ram Pickup's from 1998.5 to present as shown below...
Currently supported truck models:
1998.5 - 2002 Dodge RAM 5.9L Cummins Pickup
2003 - 2004 Dodge RAM 5.9L Cummins Pickup
2004.5 - 2005.5 Dodge RAM 5.9L Cummins Pickup
2006 - 2007 Dodge RAM 5.9L Cummins Pickup
2007 - 2009 Dodge RAM 6.7L Cummins Pickup
2007 - 2009 Dodge RAM 6.7L Cummins Cab and Chassis Truck
2010 - 2012 Dodge RAM 6.7L Cummins Pickup
2013 + Newer Dodge RAM 6.7L Cummins Pickup (this tuning not released yet - coming soon)

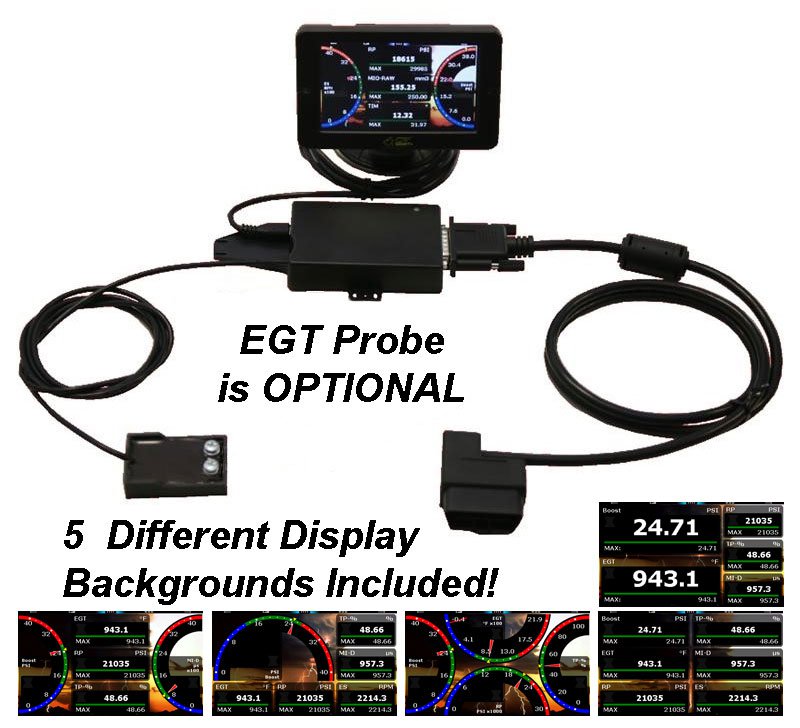

Two devices are included, the Smarty Touch Display and the Smarty Touch Controller.
Each device has its own CPU; One for the Display to power the graphics and user interface and one more for the controller to communicate with the ECM.
The Twin CPU design makes this the fastest Display and Tuner on earth!
Fastest display start up in the industry at just FOUR SECONDS!
Fastest PID refresh speed in the industry.
Fastest ECM download time in the industry, up to three times faster than the closest competition.
A typical ECM update takes between 1.5 to 6 minutes, depending on the model year of the truck.
Optional EGT sensor reads ACCURATELY up to over 2200°F (this is an optional accessory for additional purchase)
CaTCHER software inside with ten power levels.
Selectable performance parameters for fine tuning.
Works with our UDC custom tuning software (available as a separate purchase)
Adjust ABS for Larger Tires!
ABS tire height updates in just seconds.
Programmable Speed Limiter from 25 to 250 mph
Special Features for 5.9L Cummins Trucks
Power on Demand "PoD" for CR 5.9L and 2007 - 2009 6.7L trucks.
Cold weather 3 Cylinder High Idle enabled for 1998.5 - 2002 VP Equipped 5.9L trucks.
Not traceable in the stock setting: Smarty Touch leaves no footprint in all 5.9L trucks.
Manual High Idle is enabled in all softwares for Common Rail 5.9L trucks.
Supports TNT-R and SSR software for CR 5.9L trucks (Requires optional unlock code at additional charge).
RPM and Shift limiters are unlocked with TNT-R and SSR softwares.
Diagnostic Trouble Codes (DTC's)
Read DTC's in plain text.
Clears DTC's.
Reliable because it works off your OEM hardware
Many of our "competitors" depend on extenal boxes to modify signals and when their boxes fail you are stuck
A Small micro USB cable connects the display and the controller for easy installation.
A MicroSD card stores tunes and is used for updates for super simple and fast updates (a MicroSD card is included).
Fully Internet updateable.
Updates are always FREE!
MicroSD card can store multiple UDC custom tunes.
Can store any number of UDC custom files.
The only limit in custom tune storage is the size of the Micro SD card you run!
Works with any MicroSD card that is formatted with a FAT file system.
