APM 2.6 2.5 2.52 Power Module With 5.3V DC BEC
10 available
Details
Shipping: Australia: $9.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
APM 2.6 2.5 2.52 Power Module With 5.3V DC BEC

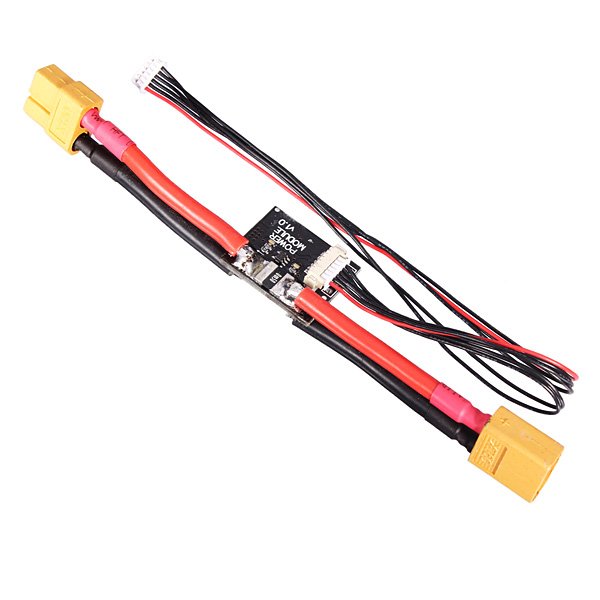

The APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.
Specifications:
Max input voltage: 50V
Max current sensing: 90A
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.3V and 2.25A max
6-pos DF13 cable plugs directly to APM 2.5's 'PM' connector
Application: For APM 2.6 , 2.5 , 2.52 , 2.8 , V3.1 Flight Controller.
When ordering select battery connection option in message area.
Priority Direct Mail 6-9 business days U.S. & Australia Orders
Standard Registered Air Shipping 7-20 day delivery U.K. and other destinations.
Package includes:
1 Power Module With 5.3V DC BEC
The APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.
Specifications:
Max input voltage: 50V
Max current sensing: 90A
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.3V and 2.25A max
6-pos DF13 cable plugs directly to APM 2.5's 'PM' connector
Application: For APM 2.6 , 2.5 , 2.52 , 2.8 , V3.1 Flight Controller.
When ordering select battery connection option in message area.
Priority Direct Mail 6-9 business days U.S. & Australia Orders
Standard Registered Air Shipping 7-20 day delivery U.K. and other destinations.
Package includes:
1 Power Module With 5.3V DC BEC
