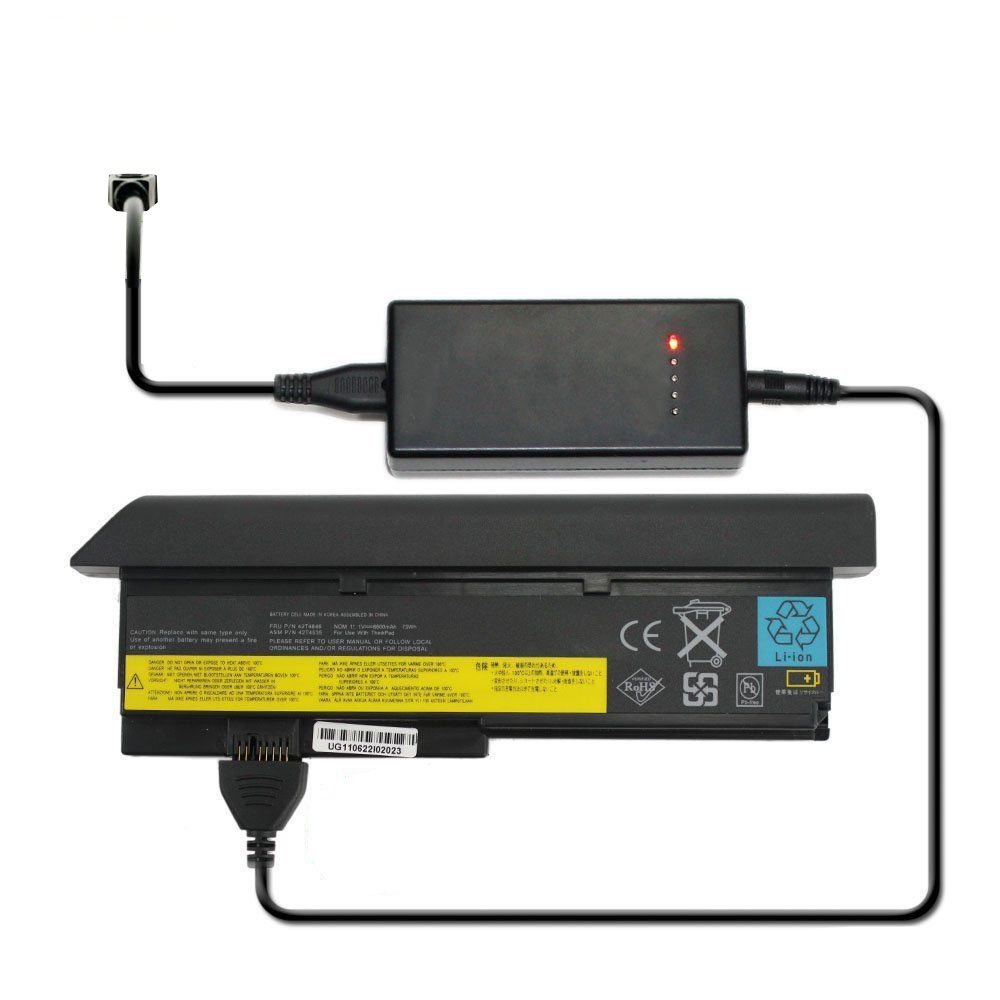

External Laptop Battery Charger for Lenovo ASM 42T4711 42T4752 42T4756 42T4794 42T4796

NEW Generic External Laptop Battery Charger for Lenovo ASM 42T4711 ASM 42T4752
Charges Laptop Batteries' part numbers :
Lenovo ASM 42T4711 ASM 42T4752 ASM 42T4756 ASM 42T4794 ASM 42T4796 FRU 42T4702 FRU 42T4710 FRU 42T4751 FRU 42T4755 FRU 42T4791
Charges Batteries for the following Laptops:

Functions:
1. You can charge your orignal battery or spare one with this charger directly. Do not need the AC adapter.
2. Read battery information from the battery protective plate and then regulate the output voltage and current.
3. With five LEDs, four green for charging status and one red for power indicating.
4. Intelligent protection against over-current, over-voltage, over-charge, over-heat and short circuit.
5. With the repair zero-voltage-battery function.
6. Simplify charging process, save your time and keep your laptop in good condition, especially if you own two batteries or more.
(BATTERY IS NOT INCLUDED)

Basic Parameters:
Input voltage: AC 100-240V.
Max. output power: 40W
Output voltage: DC 7.2V-14.8V
Max. output current: 2A
Warranty: Full 1 year.
Length of charging time: 8 hours max.(Different charging time for batteries of different capacity)

Charging Instruction:
Normal Working condtion:
Four green charging lights and the power light go on after switching on. The charger reads the battery information
from the battery protective plate, and then starts charging. If the battery comes with SMBUS, the four LED's will show
the capacity status.
Charger green LED status shows Capacity Percentage is as follows:
All the four LEDs blink circularly: < 25% Capacity Percentage.
LED1 is on, the other three LEDs blink circularly: < 50%
Both LED1 and LED2 are on, Both LED3 and LED4 blink circularly: < 75%
LED4 blinks. The other three LEDs are on: < 100%
All the four LEDs are on. = 100%
