SKUP057639BBCI

Features:
Brand new and high quality.
Micro-USB connection to your smart phone.
Listen to stereo sounds by connecting audio adapter with 3.5mm audio cable.
HDMI/MHL/HDCP controller which manages HDMI/MHL RX,HDMI TXand HDCP automatically without the need for user to develop firmware.
CBUS controller which provides the translation between the MHL RAP/RCP Request and the HDMI CEC Command.
HDMI/MHL Recever core which is compliant with HDMI 1.4 and MHL 2.0 specification.
HDMI Trnsmitter core which is compliant with HDMI1.4 specification.
HDCP RX/TX Engine which is compliant with HDCP1.4 specification.
DACsupporting up to 150 Mhz pixel rate for VGA output port.
Support HDMI Repeater function.
Audio Decoder which support 2-channel IIS and S/PDIF sudio outputs.
Support LPCM and Compressed Surround Audio.
Size:26.8cm x 6.3cm x 1.8cm-10.55inch x 2.48inch x 0.71inch.
How to Use:
Connect one end of HDMI cable into the MHL adapter.
Connect the other end to the HDMI port on your TV. (HDMI cable not included).
Connect your ORIGINAL travel charger to the MHL adapter.
Connect your ORIGINAL travel charger to an approve power source.
Connect the MHL adapter connector into the Power/Accessory interface port on your device.
Notes:
This is the same port you use to connect your travel charger.
The Video and Audio output will not work correctly if you connect through the desktop dock.
The TV screen will display what is on your device home screen.

Package Included:

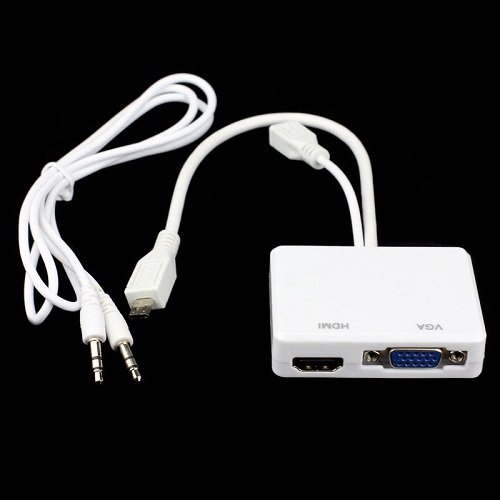

1 x MHL to HDMI VGA Splitter Adapter
1 x 3.5mm AUX Cable
NO Retail Box. Packed Safely in Bubble Bag.
