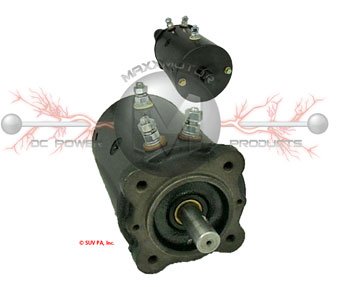

Ramsey Winch Motor// 24V// Bi-Directional// Keyway Shaft

Applications: Ramsey Winches
Part #: 51002
Voltage: 24.00
Aftermarket Motor
Rotation: Bi-Directional
Field Housing Outside Diameter: 4.524 in.
Overall Length: 9.311 in
Shaft Outside Diameter: 0.748 in.
Shaft Style: Includes keyway
Terminal 1 Size: 5/16 - 24
Terminal 2 Size: 5/16 - 24
Terminal 3 Size: 5/16 - 24
Housing Finish: Cast aluminum drive end with a black field case.
Weight: 19.44 lbs

Cross References:
Prestolite 46-2289
Prestolite 46-3523
Prestolite MMD-4001
Prestolite MMD-4401
Prestolite MMD-6102
Ramsey 458002
Ramsey 458005
Lester 10730
Lester 160-918

Replaces part #
Prestolite 46-2289
Prestolite 46-3523
Prestolite MMD-4001
Prestolite MMD-4401
Prestolite MMD-6102
Ramsey 458002
Ramsey 458005
Lester 10730
Lester 160-918

Cross References
Prestolite 46-2289
Prestolite 46-3523
Prestolite MMD-4001
Prestolite MMD-4401
Prestolite MMD-6102
Ramsey 458002
Ramsey 458005
Lester 10730
Lester 160-918

Application
