52106
Voltage: 24.00
Description

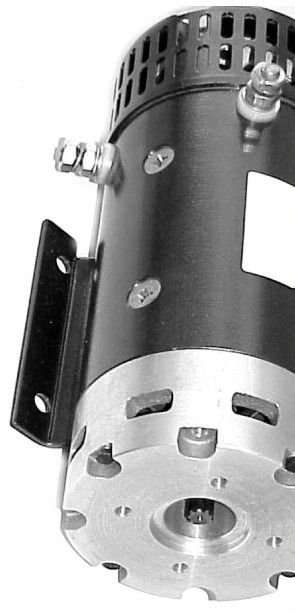

*24V* ( CW / 9S ) HD ( 5” DIA. ) MMR STYLE MOTOR
( 9 SPLINE ARMATURE SHAFT & ROUND DRIVE END FRAME )

WMS PART NUMBER, W-5106

REPLACES, W5106, 3600219, 3600-219, 3673AB, 46-4063, MMR5103, MMR-5103, MMR-5103S

APPLICATIONS
SPX, FENNER FLUID POWER )

( For a motor with the tall black plastic insulators
on the terminal posts order part number W-5106B )

Rotation: CW
AFTERMARKET MOTOR
Field Housing Outside Diameter: 5.000 in.
Shaft Style: 9 Spline
Housing Finish: Cast aluminum comm. and drive ends with a black field case.

Cross References: Fenner©/Fenner Stone©/SPX©: 3673AB
Prestolite©: 46-4063, MMR-5103, MMR-5103S, MMR-51065Replaces part

MPN: Fenner, Fenner Stone, SPX: 3673AB Prestolite©: 46-4063, MMR-5103, MMR-5103S, MMR-51065

Replaces MPNFenner©/Fenner Stone©/SPX©: 3673AB Prestolite©: 46-4063, MMR-5103, MMR-5103S, MMR-51065

Replaces part MPN: Fenner, Fenner Stone, SPX: 3673AB Prestolite©: 46-4063, MMR-5103, MMR-5103S, MMR-51065

BIG TIME PRICE INCREASE ON THESE BIG BOYS!!! JUST RECEIVED THE NEWS, SO SORRY GUYS!!!
