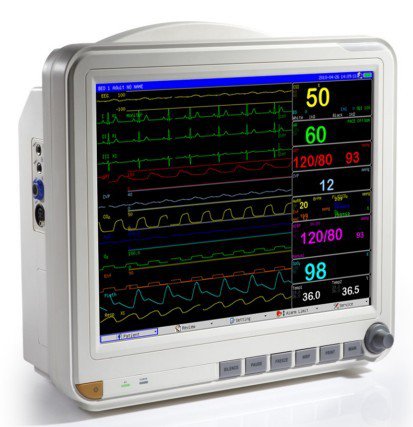

Patient Monitor SM-500D Portable Patient Monitor

Download the catalogFeatures:-15" color TFT display, up to 14 waveforms-One level menu, easy to use-Parameters including ECG/RESP, SpO2 , NIBP, TEMP, Pulse Rate and IBP(optional)-Maximum 720 hour graphic and tabular trends of all parameters -Built-in recorder and battery-Suitable for adult, pediatric and neonatal patient-Arrhythmia analysis, ST calculation, Pace analysis-Anti-ESU, anti- defibrillator-Standard network interface, can connect to Central monitor systemMain Functions:1. Six display interface;2. Store and recall: maximum 720 hour graphic and tabular trends of all parameters, 2 hours waveform, 1000 group NIBP, 200 group alarm events;3. Sound, light, voice prompt alarm;4. Support wire or wireless WIFI networking5. ST segment point adjustable Standard Configuration:1. 15” widescreen TFT, Resolution ratio: 1024×768, up to 12 waveforms ;2. Display ECG, SpO2, pulse rate, NIBP, respiration, temperature3. Plumbic acid battery.Optional:1. Recorder(Built-in)2. CO23. Anesthesia depth4. Anesthesia gas monitoring5. Oxygen monitoring1 ClassificationItemSpecificationSFDA classificationClass IIAnti-electroshock degreeClass I equipment with internal power supplyAnti-electroshock degreeTEMP/SpO2/NIBP：ECG/RESPBFCFExplosion proof levelOrdinary equipment，without explosion proofHarmful liquid proof degreeOrdinary equipment，without liquid proofWorking systemContinuous running equipment2 Applicable standardsMedical electrical equipment GB 9706.1-2007, Part I: General requirements for safetyGB 9706.25-2005 Medical electrical equipment Part 2-27: ECG monitoring equipment safety requirementsYY 1079-2008 ECGYY0667-2008 Medical electrical equipment Part 2: Automatic cycling non-invasive blood pressure monitoring equipment, safety and essential performanceYY0668-2008 Medical electrical equipment Part 2: multi-parameter patient monitoring equipment requirements for the safety3 Monitor size and weightsize 365 ×300 ×160 mm Weight 5 kg4 Power Supply100~240 VAC, 50/60 Hz, Pmax=90VA Fuse T1.5A 5 Battery2.6 Ah 12V rechargeable batteryOperating time after full charge is more than 1 hours Operating time after the first alarm of low battery will be about 5 minutes Maximum charging time is less than 6 hours. 6 Signal Interface Network interface standard RJ45 Socket7 StorageTrend 720 hoursNIBP review 1000 NIBP events Wave review 2 hoursAlarm review 200 alarm eventsAll storage data are non volatile. 8 Environment8.1 TemperatureWorking 0 ~ 40 °CStorage -20 ~ 50°C8.2 HumidityWorking 15% - 90 % (no coagulation)Storage 15% - 90 % (no coagulation) 8.3 Atmospheric pressureWorking 86.0 kPa ~ 106.0kPa;Storage 86.0 kPa ~ 106.0kPa9 ECG Specification9.1 Heart rate calculation methodSince the first occurrence of heart rate to heart rate occurred in the second interval T1; second heart rate, heart rate occurred to a third place time interval T2; continuous record 10 times, and then calculated the average interval of 10, must the heart rate per minute. 3s ~ 10s refresh every heart.9.2 Heart rate meter accuracy and arrhythmia responseMonitor the 20s stable time after figure ECG heart rate a wave group): heart rate display 40bpm ± 5bpm; b): heart rate display 30bpm ±5bpm; c): heart rate display 120bpm±5bpm; d): heart rate display 45bpm±5bpmA) Couple rhythm — two waves of duration is 1500ms; if the calculation all the QRS complex, heart rate to 80bpm, if only large R wave or S-wave, the heart rate to 40bpm.B) Slow change couple rhythm — if the calculation all the QRS complex, heart rate to calculate 60bpm, if only large waves, heart rate to 30bpm.C) Fast couple rhythm — if the calculation all the QRS complex, heart rate as 120bpm.D) bi-directional contraction — if you calculate the QRS complex, heart rate to calculate 90bpm, if only large waves, heart rate to 45bpm.9.3 Lead mode5 Leads: RA、LA、LL、RL、V; lead mode: I, II, III, AVR, AVL, AVF, V9.4 GainGain control: manually four stalls1/4 stalls(×0.25) 2.5mm/mV; 1/2 stalls (×0.50) 5.0mm/mV; 1 stall (×1) 10mm/mV; 2 stalls (×2) mV 20mm/mv;9.5 Heart rateMeasure range:Adult 15 ~ 300 bpmNeonatal/Pediatric 15 ~ 350 bpmaccuracy ± 1%resolution 1 bpm9.6 Sensitivity> 200 μV P-P9.7 Differential Input Impedance> 5 M ohm9.8 BandwidthSurgery 1 ~ 20 HzMonitor 0.5 ~ 40 HzDiagnostic 0.05 ~ 130 Hz9.9 CMRRDiagnostic Mode >90 dBMonitor Mode >110 dBSurgery Mode >110 dB9.10 Electrode offset potential±300mV9.11 Input dynamic rangeIn any lead, the applied DC bias voltage of ± 300mV to 320mV / s rate of change of ± 5mV of the differential mode voltage, and display devices should have the capacity to respond; output signal amplitude error should not exceed ± 10% ;9.12 pacing pulse suppression Monitor switch is open in the pacemaker, can inhibit the range: ± 2 mV ~ ± 700mV, width: 0.1ms ~ 2ms, rise time: 10us ~ 100μs normal QRS wave single pulse without overshoot pacing pulse does not affect heart rate calculation. Monitor switch is open in the pacemaker, can inhibit the range: ± 2 mV ~ ± 5mV, width: 0.5ms ~ 2ms, rise time: 10us ~ 100μs single pulse overshoot normal QRS waves of pacing pulses, without affecting heart rate calculation. Overshoot (a0) range should 0.025ap to 0.25ap range, independent of the choice of time constant, but not more than 2mV; Monitor switch is open in the pacemaker, pacing pulse detector inhibition of rapid ECG signal to 1V / s RTI minimum input slew rate. 9.13 QRS wave amplitude and period range between Amplitude (p-v RTI) range: 0.5mV ~ 5mV; Width (adult monitor): 70 ~ 120ms; Width (neonatal / pediatric): 40 ~ 120ms; Set monitor mode for adults should not be less than or equal to 0.15mV amplitude QRS signal or of less than or equal to 10ms between the 1mV signal a response. For neonatal / pediatric mode, monitors allowed to respond to the above two signals to respond to either or both; 9.14 frequency voltage tolerance Superimposed on a QRS wave signals received, and to meet tolerances of ± 10% of heart rate showed the error limits of accuracy required under the premise of the maximum frequency sine wave peak - valley kurtosis should not be less than 100μV (pv) 9.15 drift tolerance When a 0.1Hz, amplitude 4mV (pv) of the triangular wave superimposed on a string of rate of 0.5mV, interval 100ms, repetition rate of 80bpm when the QRS wave, ECG heart rate monitor shows the error should be within 80bpm ± 8bpm; 9.16 baseline control and stability Reset: reset recovery time is not greater than the 3s; Baseline Stability: After boot, 10s baseline drift in the output rate should not exceed 10μV / s RTI; After boot, 1h, total drift should not exceed 500μV / s RTI; Working temperature should not exceed 50μV / ℃ 9.17 system noise Should be not more than 30μV (p-v RTI) 9.18 Multi-channel crosstalk Should not be imposed by the channel signal is not imposed without the signal channel output generated more than spin plus signal (multiplied by the gain) 5%; 9.19 Electro surgery interference suppression Heart rate should not exceed the interference is not activated when the heart rate ± 10%, interfere with the duration should not exceed 10S; 9.20 pacemaker pulse display capabilities Show an increase is not less than 0.2mV RTI; in 10s, the baseline drift is not greater than 10mm; 9.21 heart rate response time Step increase in heart rate from 80bpm to 120bpm maximum response time of less than 10 s; Heart rate from 80bpm to 40bpm step to reduce the maximum response time of less than 10 s; 9.22 to the alarm time High heart rate alarm start time is less than 10 s by YY 1079-2008; Low heart rate alarm start time is less than 10 s according to YY 1079-2008; Cardiac stop alarm start time is less than 10 s by YY 1079-2008; Tachycardia alarm start time is less than 10 s. 9.23 calibration signal 1mV (peak to peak), the accuracy ≤±5%10 NIBP Specifications10.1 MeasurementsPulse wave oscillation10.2 ModeManual / Automatic / Continuous10.3 Automatic measurement mode of measurement interval1 minute, 2 minutes, 3 minutes, 4 minutes, 5 minutes, 10 minutes, 15 minutes, 30 minutes, 60 minutes, 90 minutes, 2 hours, 3 hours, 4 hours, 8 hours10.4 Continuous measurement mode of measurement time5 minutes10.5 pulse rate range40 - 240 bpm10.6 Measurement range and accuracyRange40 ~ 280mmHg systolic blood pressure for adultsDiastolic blood pressure 10 ~ 220mmHgThe average pressure of 20 ~ 240mmHg40 ~ 220mmHg systolic blood pressure of childrenDiastolic blood pressure 10 ~ 160mmHg20 ~ 170mmHg mean pressureNewborn systolic blood pressure 40 ~ 135mmHgDiastolic blood pressure 10 ~ 100mmHgThe average pressure of 20 ~ 110mmHgStatic pressure range 0 ~ 300mmHgAccuracy  3mmHg static pressureBlood pressure accuracy: the maximum average error of  5mmHg;Maximum standard deviation 8mmHg10.7 overvoltage protectionAdult model 300 mmHgChild model 240 mmHgNeonatal model 150 mmHg11 SpO ₂ Specifications11.1 oxygen saturationMeasuring range 0 to 100%Resolution 1%Accuracy of 70 ~ 100%:  2%<69%: not defined11.2 pulse rateRange 20 ~ 250bpmResolution 1bpmAccuracy  3bpm12 temperature specificationsSensor type 10K series, 2.25K SeriesNumber of channels 2 channelsRange 0 ~ 50  CResolution of 0.1  CAccuracy  0.1  C (sensor error not included)13 recorder (optional)Record width of 48 mmWalking paper speed 25/50 mm / s2-channel waveform tracingsThe following FDA Disclaimer is required for all eCRATER listing in Healthcare category and is included for REFERENCE:The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not buy on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, We will verify your status as an authorized purchaser of this item before shipping of the item.Contec Medical Systems Co.,Ltd, manufacturerQualificationShipment1.Foryourearlierandsafertoreceivetheitem,pleaseleaveusyourdetailedaddressandtelephonenumberforpos
