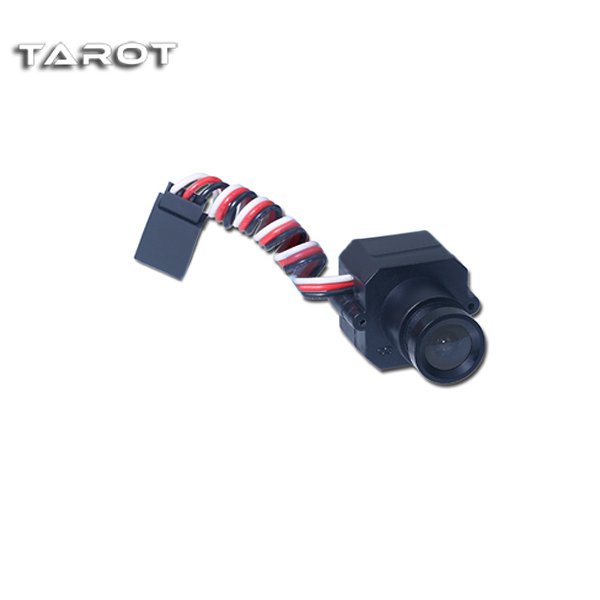

Tarot 12V 600TVL 120° 2.8mm FPV Camera TL300M For RC Quadcopters

Tarot 12V 600TVL 120° 2.8mm FPV Camera TL300M For RC QuadcoptersDescription:TAROT custom 600TVL mini HD color camera (FPV aerial camera) 2.8MM using 120-degree whole glass wide-angle lens focal. Suitable for mini200 / 250/300 mini quadcopters, FPV model aircraft aerial field, monitoring. Products are of small size, built-in step-down module, can be directly connected 3S 11.1V lithium polymer battery.Specification:- Brand Name: Tarot- Item NO.:TL300M- Lens:2.8mm- Camera Angle:120°- Definition: 600TV Lines (HD)- Effective pixels: PAL = 720 (H) × 576 (V) / NTSC = 720 (H) × 487 (V)- Video system: NTSC / PAL- Sensitive chip: 1/3 inch HD Color CMOS- Video Output: 1.0Vp-p / 75Ω- Minimum illumination 0.008Lux (ultra low-light)- Power consumption: 40MA ± 10%- Operating voltage: DC5-15V ± 10%- Synchronization System: Internal Synchronization- SNR: >50dB- An electronic shutter (N) 1 / 60-1 / 10000s, (P) 1 / 50-1 / 10000s- Working temperature: 0 degree ~ 45 degree- Usage: Suitable for mini 200/250/300 mini quadcopters.Wiring instructions:- Red DC12V power input connection- Black ground wire connected to the negative power supply and video- White connected AV video signal outputPackage Included:1x Tarot 600TVL mini HD color camera (21* 26*30mm ± 3mm) 15g
