Description:

Size: 81 mm x 81 mm x 1.6 mm
PCB thickness: 1.6 mm
Materials: FR4 military level
PCB color: blue
DigitalTube display: red
Power supply voltage: miniUSB, external connection 5V ,3V button battery for clock chip on the board of the standby power supply

Function:

a. Electronic clock function. Four digital tube display time function. Every second, digital tube, two points on a flashing, at the same time, the casing outside the clock LED will take turns to light up a take turns bright finish a circle represents the clock through a minute
b. Date display. Through the key switch, you can see the default date. Specific look at the following keys function description
c. Alarm function. Through the button switch, you can set the alarm clock function. When to set the alarm time, buzzer sounds, if not, manually turn off the buzzer will continue to ring for 10 minutes. Specific look at the following keys function description
d. Burning function. The reserved buffer program interface, can change to the circuit board to do procedure, easy to operate
e. Real time clock function. Tone after a preset time, even if the power lost, again after power on, no need to set a time
f. Temperature display function. Under the time display mode, press PLUS, can display the current temperature
g. Many mode display function. Outer LED display has four modes, can cooperate to add key implementation, through the model key
Mode 0: is also the default display mode, all the 1-12 hours red digital tube light, when the clock through a second, is the green digital tube is take turns to light up a.
Mode 1: as the clock through a second, outer ring LED lit one by one, that is 60 seconds, outer ring all the LED light. The next minute, all leds light up, and through the clock for a second, put out one by one. And the next minute, leds light up one by one again, so alternates.
Mode 2: when the clock through a second, outer ring take turns to light up a LED. The first seconds, only the first LED light, 2 seconds only the second LED light.
Mode 3: when the clock through a second, outer LED turns off a. The first seconds, only the first LED out, only the second LED out 2 seconds

Key Function:

PLUS key, for years, months, days, hours, minutes, seconds add operation. According to the numerical sum 1 at a time
MODE key, can be in display clock, switch to the year, month, day, hours, minutes, alarm clock, the adjustment of outer ring LED display state. To use add key to the year, month, day, hours, minutes, seconds, and display mode to adjust
RST key, press the reset button, then the MCU reset

Some infomation here:

Data sheet

Schematic

Notice:

The version is update to V1.2, just the logo change,all the function doesn't change.

Package included:

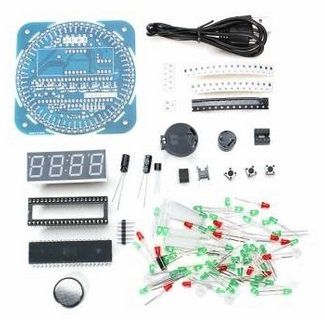

1 x Rotation LED Electronic Clock Kit
SKU176893BG1
