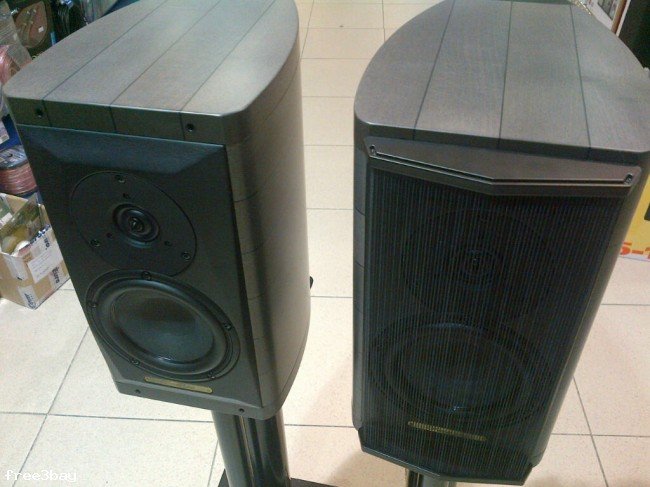

SONUS FABER Auditor M Graphite

Auditor M embodies the Sonus Faber tradition in the category of compact loudspeakers, making use of top-grade component parts and a minimal crossover network. Like its predecessors, Auditor M creates a highly refined and exquisitely musical sound.
FORM: A lute shaped form, first used on the Amati and Guarneri homage models is again employed on the Auditor M. Twenty pieces of both solid and laminated maple wood ensures excellent cabinet stiffness that breaks up any resonance nodes and controls standing waves. This cabinet construction provides excellent results with even difficult room acoustics allowing the lower octaves to project with authority into the listening space while the mid and high frequencies disperse effortlessly. The Auditor M’s small form factor allows it to be easily integrated in a wide variety of listening spaces.
FUNCTION: Sonus faber believes the drivers are crucial to the sonic success of their approach. With the Auditor M, Sonus faber continues its tradition of reducing moving mass, stiffing the coned drives, while asking the tweeter to extend out well into the 30kHz region. What makes this recipe so remarkable is that as with all Sonus faber products balance and harmonic richness is retained. In lesser designs stiffening might well result in a hard and brittle sound, but not here. Instead, we find a true fidelity, powerful yet refined, dynamic and spacious.
A 6” (150mm) Scandinavian-made woofer-midrange uses a special black wood pulp fiber cone that is capable of particularly high resolution and dynamic linearity. And the 1” (25mm) extended bandwidth high-frequency ring radiator driver valued for its smoothness and extension create a compact loudspeaker whose performance belies its size. Inevitably, the finest drivers and cabinets would mean little without brilliant crossover integration. This aspect of Sonus faber has always been an inherent strength, with much of the musicality and sweetness deriving from the ability to blend the various elements into an organic whole. Here, a non-resonant low order crossover is used for its openness and dynamic capabilities with a crossover point set at 2.5kHz.

Once again, Sonus faber delivers another iconic model that clearly redefines “musical performance” in the compact loudspeaker category with the Auditor M. System
2 way vented box loudspeaker
Cabinet
Lute shape design, combination of sandwich construction, obtained using 20 hand selected wood layers and solid maple, quality graded and oriented for carefully optimized resonances and standing waves control
Tweeter
25 mm ultra dynamic ring radiator-driver, with dual toroidal wave-Sonus faber Auditor M veduta posterioreguide
Midrange
150 mm cone driver with Symmetric Drive Motor System and selected black wood fiber cone, high resolution, treated for break-up control. Dynamic linear suspension
Cross-over
Non-resonant first order design, optimized phase characteristics for optimal space/time performance, crossing point 2500Hz
Frequency response
50 Hz 30.000 Hz, tuning ports included
Sensivity
88 db SPL (2.83 V/1m)
Nominal impedance
4 ohms
Power handling
40W 150W, without clipping
Finish
Graphite
Dimension
202 x 365 x 353 mm (WxDxH). WEIGHT: 18.4 Kg per pair net weight/ 22.3 Kg per pair shipping weight
Optional dedicated stand
415 x 310 x 710 mm (WxDxH). WEIGHT: 22.6 Kg per pair net weight/ 26.4 Kg per pair shipping weight
Total Dimension
415 x 400 x 1065 mm (WxDxH)
Weight: 40.6 lbs. (18.4 Kg) per pair – net weight
49.2 lbs. (22.3 Kg) per pair – shipping weight
